Références
| SKU | Finishing stage | Pkg | Delay (d) |
|---|---|---|---|
| 3ES92069 | 9005-30% | 100 | 14 |
| 3ES91068 | 9016-80% | 100 | 14 |
| 3ES92069RAL |
|
1 | 14 |
Information
Commentaire

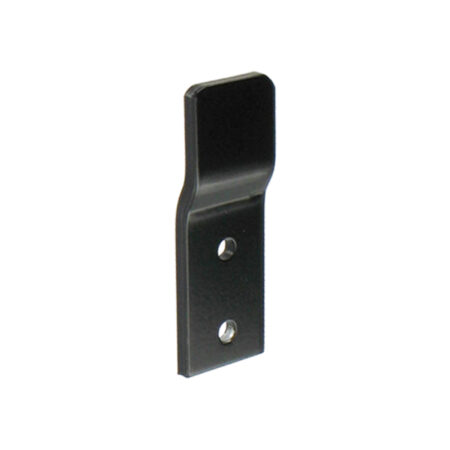

Made of aluminium
For double shutter

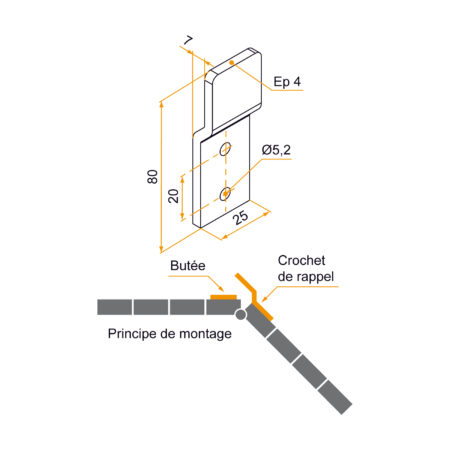

Choose the counter bent of the hook according to the thickness of the end stop
For double shutter
Choose the counter bent of the hook according to the thickness of the end stop
Astuce
Suitable with:
Atlantique Espagnolette bolt end stop with composite protection.
Please refer to the index.
Atlantique Espagnolette bolt end stop with composite protection.
Please refer to the index.
