Références
| SKU | Thickness | Finishing stage | Pkg | Delay (d) |
|---|---|---|---|---|
| CG392530 | 50 to 60 | 9005-30% | 1 | 7 |
| CG391530 | 50 to 60 | 9016-80% | 1 | 7 |
| CG3XX530 | 50 to 60 |
|
1 | 21 |
| CG392531 | 80 to 90 | 9005-30% | 1 | 7 |
| CG391531 | 80 to 90 | 9016-80% | 1 | 7 |
| CG3XX531 | 80 to 90 |
|
1 | 21 |
Information
Commentaire

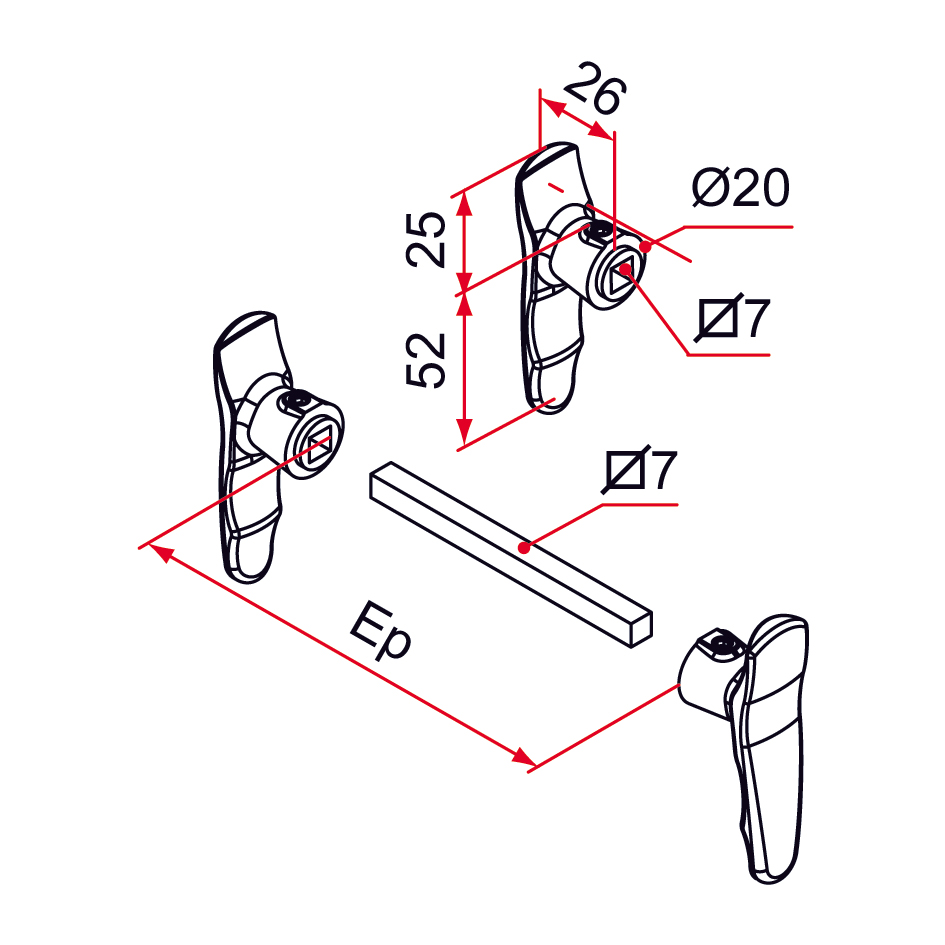

Aluminium lever handles
Lever handle fastening with stainless steel needle screw
Delivered with a 7 mm stainless steel spindle bar and assembly key
Lever handle fastening with stainless steel needle screw
Delivered with a 7 mm stainless steel spindle bar and assembly key
Astuce
Be sure to choose the correct lever handle for your application.
Thickness dimensions are indicated for the overall assembly thickness: support thickness (shutter, door, gate) + lock thickness + plate or hole thickness.
The spindle bar is adjustable within the anti-slip shape limit.
Possible combinations with our other lever handles. Please contact us for more information.
Thickness dimensions are indicated for the overall assembly thickness: support thickness (shutter, door, gate) + lock thickness + plate or hole thickness.
The spindle bar is adjustable within the anti-slip shape limit.
Possible combinations with our other lever handles. Please contact us for more information.
