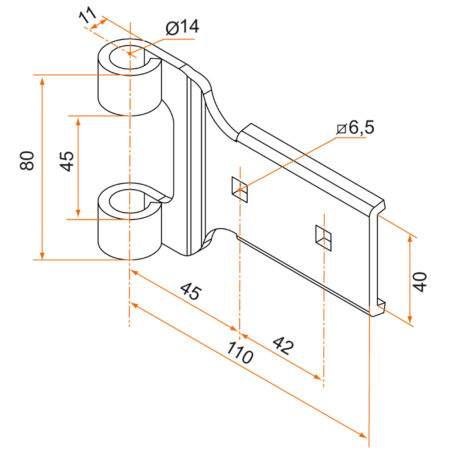

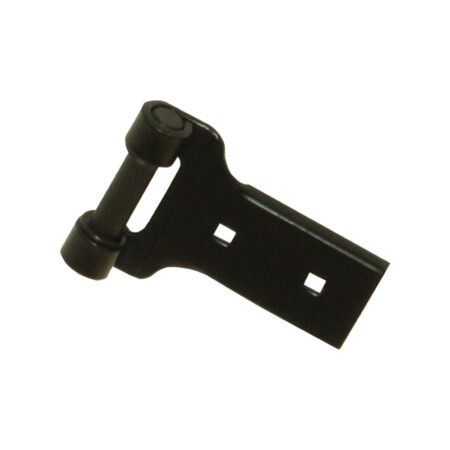

Pairing hinge with pin – Ø14 – for T strap hinge with 14mm offset – 6.5 mm square holes

References

Information

Downloads

Place an order

Reference

Information

Downloads

Place an order

Références

SKU	Finishing stage	Composite part	No. of holes	Pkg	Delay (d)
800863C	9005-30%	noir	2	25	7
800867C	9016-80%	blanc	2	25	7
800863CRAL		noir	2	1	14
800863CABRAL		blanc	2	1	14
