Technical information
Finish
Grey ABS and electro-galvanized steel.
Finition
Grey ABS and electro-galvanized steel

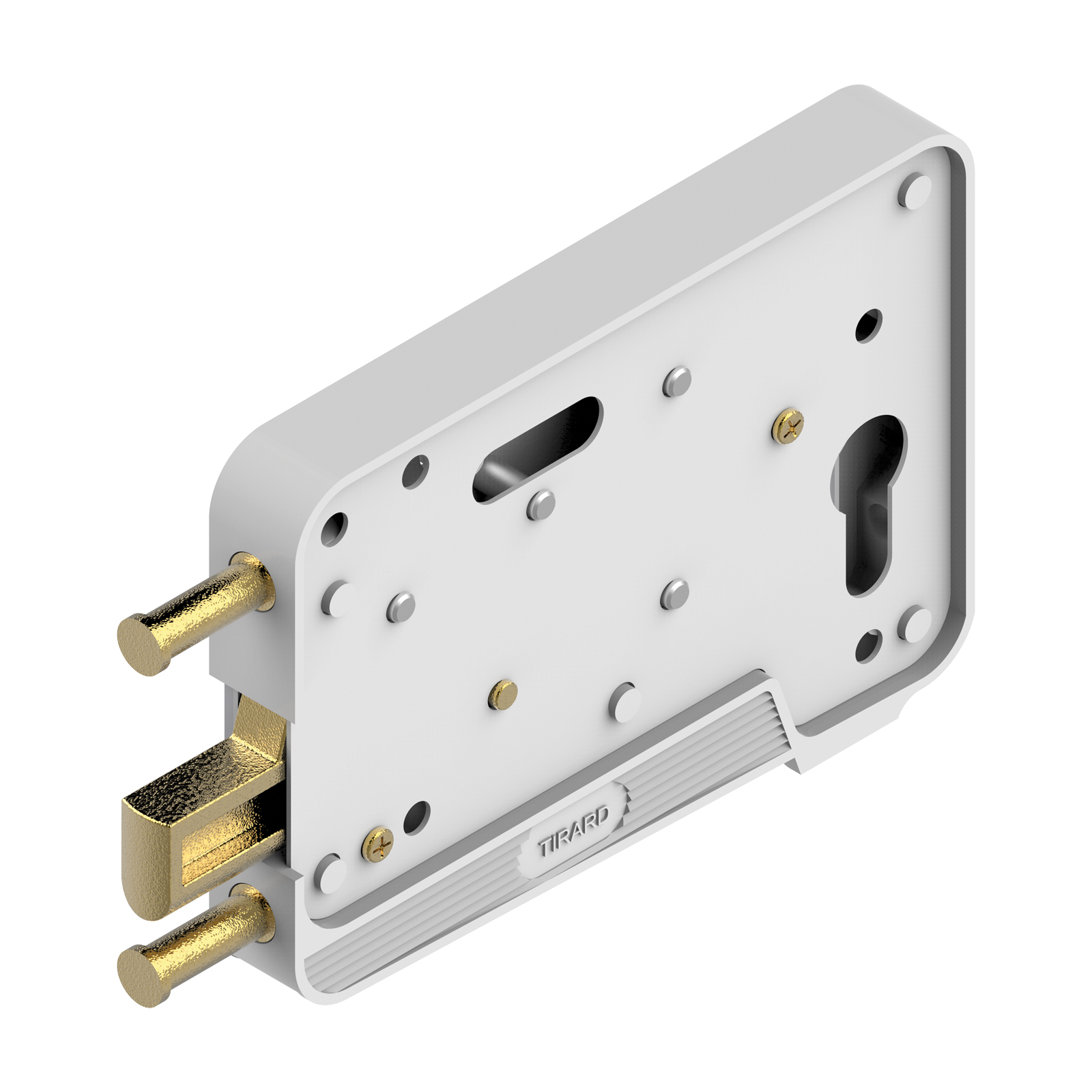

Description
Box and cover in 10/10th steel.
The box includes a handle for internal operation.
Highly offset cylinder axis (130 mm) makes it easier to handle gates close to brickwork.
Cupro-aluminium tilting bolt.
Adjustable guide pin in zinc-coated steel.
ABS belt, cover, wedge and pedestrian gate stopper.
Brass half-cylinder section, length 40 (30+10).
The box includes a handle for internal operation.
Highly offset cylinder axis (130 mm) makes it easier to handle gates close to brickwork.
Cupro-aluminium tilting bolt.
Adjustable guide pin in zinc-coated steel.
ABS belt, cover, wedge and pedestrian gate stopper.
Brass half-cylinder section, length 40 (30+10).
Cylinder length to be ordered based on the panel thickness:
– from 20 to 22 mm: cylinder 10 + 40
– from 23 to 32 mm: cylinder 10 + 50
– from 20 to 22 mm: cylinder 10 + 40
– from 23 to 32 mm: cylinder 10 + 50
