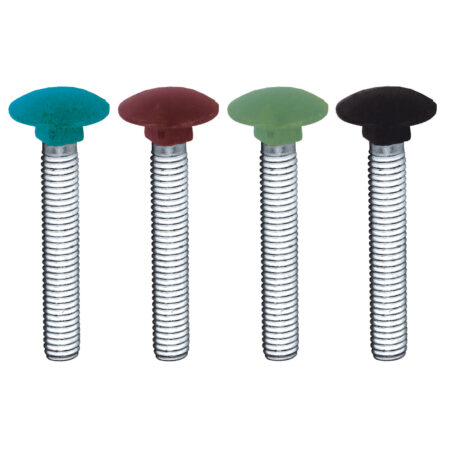

Screw-TRCC – M7 – aluminium – for hinge assembly

Access the presentation

Références

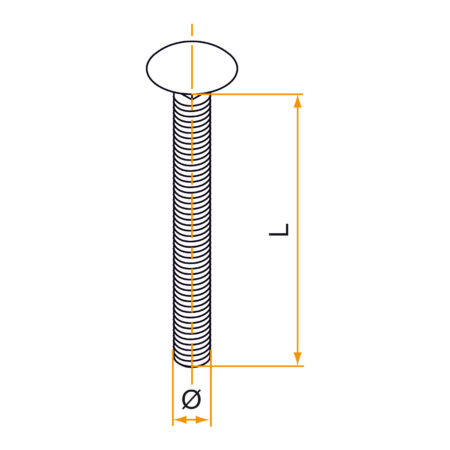

SKU L Ø Finishing stage Pkg Delay (d)
3VI92005 35 7 9005-30% 500 14
8003006 35 7 9016-80% 500 14
900300RAL 35 7 multi-RAL 50 14
3VI92006 40 7 9005-30% 500 14
8003026 40 7 9016-80% 500 14
900301RAL 40 7 multi-RAL 50 14
3VI92007 45 7 9005-30% 500 14
8003046 45 7 9016-80% 500 14
900314RAL 45 7 multi-RAL 50 14
3VI92008 50 7 9005-30% 500 14
8003066 50 7 9016-80% 500 14
900302RAL 50 7 multi-RAL 50 14
3VI92009 55 7 9005-30% 500 14
8003076 55 7 9016-80% 500 14
9003025RAL 55 7 multi-RAL 50 14
3VI92010 60 7 9005-30% 500 14
8003086 60 7 9016-80% 500 14
900303RAL 60 7 multi-RAL 50 14
3VI92011 65 7 9005-30% 500 14
8003106 65 7 9016-80% 500 14
900312RAL 65 7 multi-RAL 50 14
3VI92012 70 7 9005-30% 500 14
8003126 70 7 9016-80% 500 14
900313RAL 70 7 multi-RAL 50 14
Technical specifications

Information

Astuce

Astuce

To determine the under head length to use: add 14 mm to the shutter thickness.
Example: shutter thickness = 26 mm + 14 mm = TRCC 6×40.
