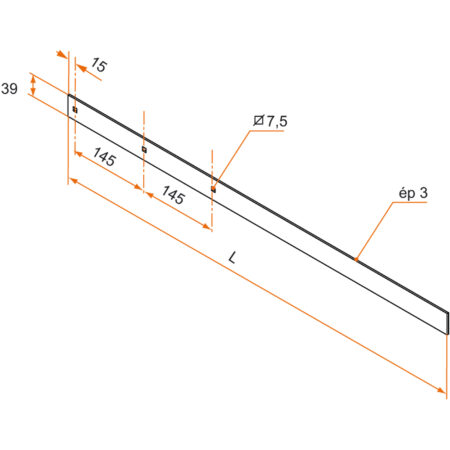

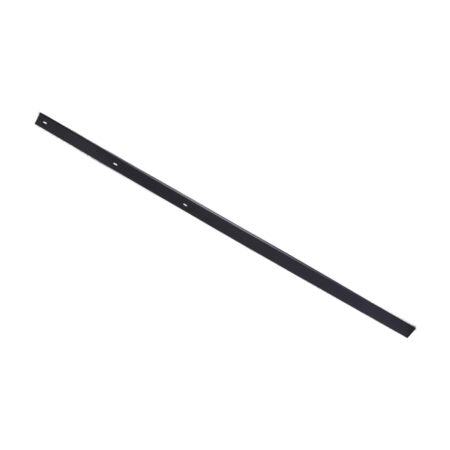

Straight adjustable counter- strap hinge – square end – 39×3 – 6.5 mm square holes

References

Information

Downloads

Place an order

Reference

Information

Downloads

Place an order

Références

SKU	L	No. of holes	Finishing stage	Pkg	Delay (d)
8000628R	795	3	9005-30%	25	14
80006586R	795	3	9016-80%	25	21
8000628RRAL	795	3		1	21
