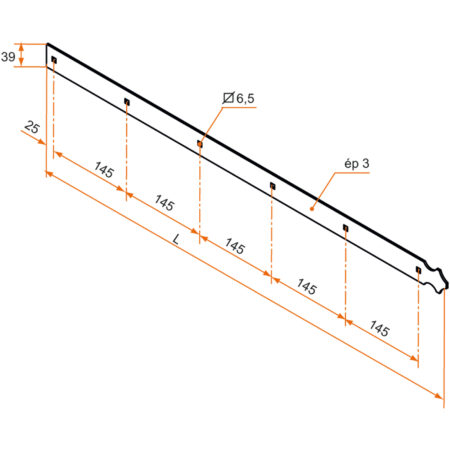

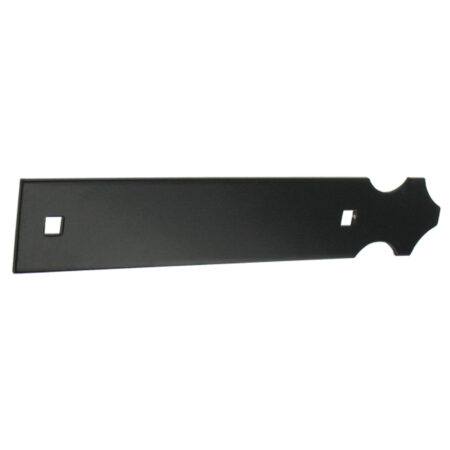

Straight counter strap hinge – scalloped end – 39×3 – 6.5 mm square holes – first hole-25 mm

References

Information

Downloads

Place an order

Reference

Information

Downloads

Place an order

Références

SKU	L	No. of holes	Finishing stage	Pkg	Delay (d)
3PD92204	210	2	9005-30%	100	7
3PD91215	210	2	9016-80%	100	7
3PD92204RAL	210	2		1	14
3PD92205	355	3	9005-30%	100	7
3PD91216	355	3	9016-80%	100	7
3PD92205RAL	355	3		1	14
3PD92206	500	4	9005-30%	50	7
3PD91217	500	4	9016-80%	50	7
3PD92206RAL	500	4		1	14
3PD92207	645	5	9005-30%	50	7
3PD91218	645	5	9016-80%	50	21
3PD92207RAL	645	5		1	21
3PD92208	790	6	9005-30%	25	7
3PD91219	790	6	9016-80%	25	21
3PD92208RAL	790	6		1	21
3PD92209	935	7	9005-30%	25	21
3PD91220	935	7	9016-80%	25	21
3PD92209RAL	935	7		1	21
3PD92210	1080	8	9005-30%	25	21
3PD91221	1080	8	9016-80%	25	21
