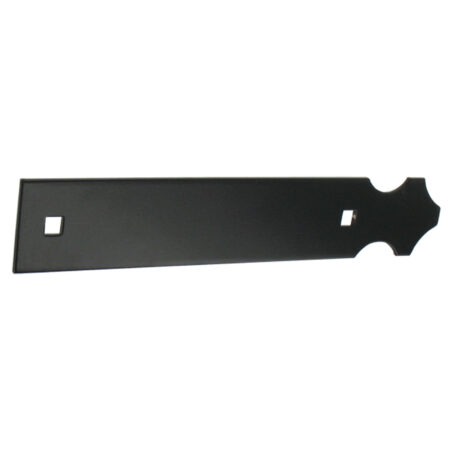

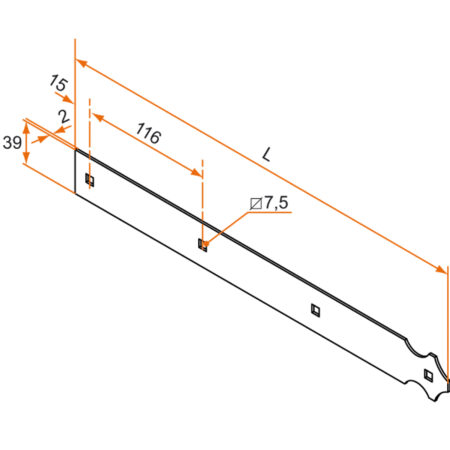

Straight counter strap hinge – scalloped end – 39×2 – 7.5 mm square holes – first hole-15 mm

References

Information

Downloads

Place an order

Reference

Information

Downloads

Place an order

Références

SKU	L	No. of holes	Finishing stage	Pkg	Delay (d)
3PD92212	152	2	9005-30%	100	21
3PD91223	152	2	9016-80%	100	21
3PD92212RAL	152	2		1	21
3PD92213	267	3	9005-30%	100	21
3PD91224	267	3	9016-80%	100	21
3PD92213RAL	267	3		1	21
3PD92214	383	4	9005-30%	100	21
3PD91225	383	4	9016-80%	100	21
3PD92214RAL	383	4		1	21
3PD92215	499	5	9005-30%	100	21
3PD91226	499	5	9016-80%	100	21
3PD92215RAL	499	5		1	21
3PD92216	615	6	9005-30%	50	21
3PD91227	615	6	9016-80%	50	21
3PD92216RAL	615	6		1	21
3PD92217	731	7	9005-30%	50	21
3PD91228	731	7	9016-80%	50	21
3PD92217RAL	731	7		1	21
3PD92218	847	8	9005-30%	50	21
3PD91229	847	8	9016-80%	50	21
3PD92218RAL	847	8		1	21
3PD92219	963	9	9005-30%	50	21
3PD91230	963	9	9016-80%	50	21

Technical specifications

References

Informations

Documents for download

Place an order

Information

Astuce

This counter strap hinge is recommended for shutters with a peripheral U of 10 mm width or more.

Commentaire

Made of aluminium
