116mm center distance
Introduction

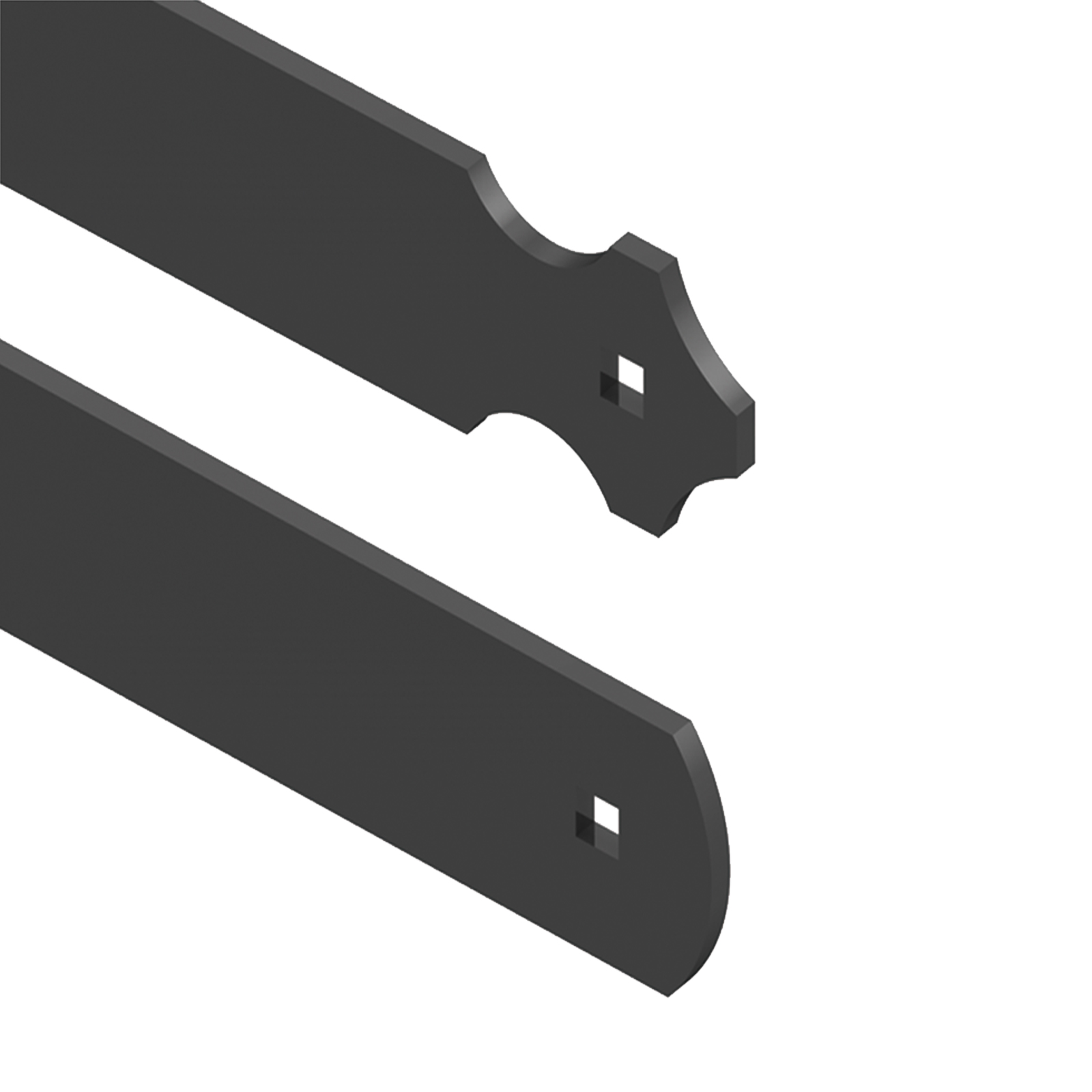

The 116 range consists of hinges, adjustable hinges, and hinge coupling.
Informations techniques
Technical specifications
116 mm center distance.
Produits connexes
-
Right hinge – festoon end – Ø14 – 39×3.7 – square holes of 7.5 – offset 14×60
-
Right hinge – festoon end – Ø14 – 39×3.7 – square holes of 7.5 – offset 14×80
-
Right hinge – festoon end – Ø14 – 39×3.7 – square holes of 7.5 – offset 19×60
-
Right hinge – festoon end – Ø14 – 39×3.7 – square holes of 7.5 – offset 19×80
-
Reinforced right hinge – festoon end – Ø14 – 39×4.7 – square holes of 7.5 – offset 20×80
-
Right hinge – festoon end – Ø14 – 39×3.7 – square holes of 7.5 – offset 38×60
-
Right hinge – festoon end – Ø14 – 39×3.7 – square holes of 7.5 – offset 38×80
-
Right hinge – festoon end – Ø16 – 39×6 – square holes of 7.5 – offset 25×80
-
Cuttable right hinge – square end – Ø14 – 39×4.7 – square holes of 7.5 – offset 38×80
-
Cuttable right hinge – square end Ø14 – 39×4.7 – square holes of 7.5 – offset 50×80
-
Cuttable right hinge – square end – Ø14 – 39×4.7 – square holes of 7.5 – offset 55×80
-
Cuttable right hinge – square end – Ø14 – 39×4.7 – square holes of 7.5 – offset 55×95
-
Cuttable right hinge – square end – Ø14 – 39×6 – square holes of 7.5 – offset 55×95
-
Cuttable right-hand counter-hinge – square end – 39×3 – square holes of 7.5
-
Twin hinge with axle – Ø14 – for offset hinge 19 – square holes of 7.5
-
Right counter-hinge – festoon end – 39×2 – square holes of 7.5 – first hole at 15
-
Right counter-hinge – festoon end – 39×2 – square holes of 7.5 – first hole at 25
-
Right counter-hinge – festoon end – 39×3 – square holes of 7.5 – first hole at 25
-
Right hinge – round end – Ø14 – 39×3.7 – square holes of 7.5 – offset 14×80
-
Right hinge – round end – Ø14 – 39×3.7 – square holes of 7.5 – offset 19×60
-
Right hinge – round end – Ø14 – 39×3.7 – square holes of 7.5 – offset 19×80
-
Right counter-hinge – round end – 39×3 – square holes of 7.5 – first hole at 15
-
Right counter-hinge – round end – 39×3 – square holes of 7.5 – 1st hole at 25
