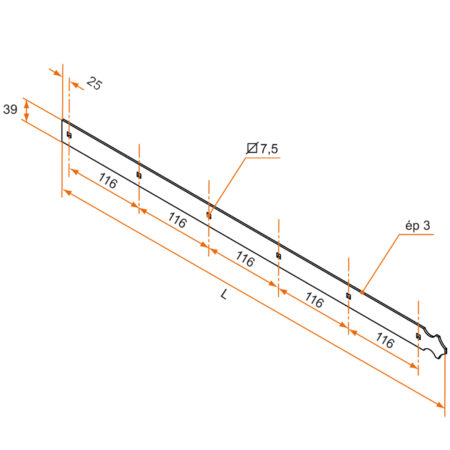

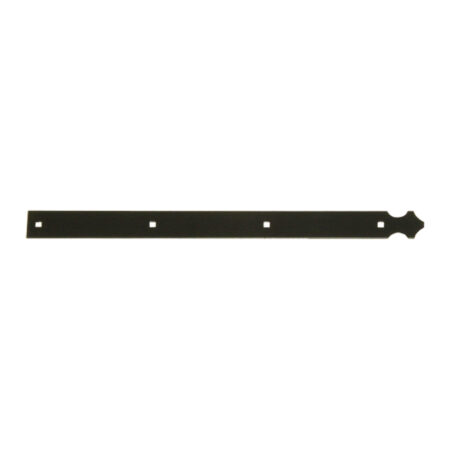

Straight counter strap hinge – scalloped end – 39×3 – 7.5 mm square holes – first hole-25 mm

References

Information

Downloads

Place an order

Reference

Information

Downloads

Place an order

Références

SKU	L	No. of holes	Finishing stage	Pkg	Delay (d)
8000121	162	2	9005-30%	100	14
80001516	162	2	9016-80%	100	21
8000121RAL	162	2		1	21
8000221	277	3	9005-30%	100	14
80002516	277	3	9016-80%	100	14
8000221RAL	277	3		1	14
8000321	393	4	9005-30%	50	14
80003516	393	4	9016-80%	50	14
8000321RAL	393	4		1	14
8000421	509	5	9005-30%	50	14
80004516	509	5	9016-80%	50	14
8000421RAL	509	5		1	14
8000521	625	6	9005-30%	50	14
80005516	625	6	9016-80%	50	14
8000521RAL	625	6		1	14
8000621	741	7	9005-30%	25	14
80006516	741	7	9016-80%	25	21
8000621RAL	741	7		1	21
8000721	857	8	9005-30%	25	14
80007516	857	8	9016-80%	25	21
8000721RAL	857	8		1	21
8000821	973	9	9005-30%	25	21
80008516	973	9	9016-80%	25	21
8000821RAL	973	9		1	21
8000921	1089	10	9005-30%	25	21
80009016	1089	10	9016-80%	25	21
8001021	1205	11	9005-30%	25	21
80009516	1205	11	9016-80%	25	21
PDU158N53	1321	12	9005-30%	25	21
PDU158B68	1321	12	9016-80%	25	21
