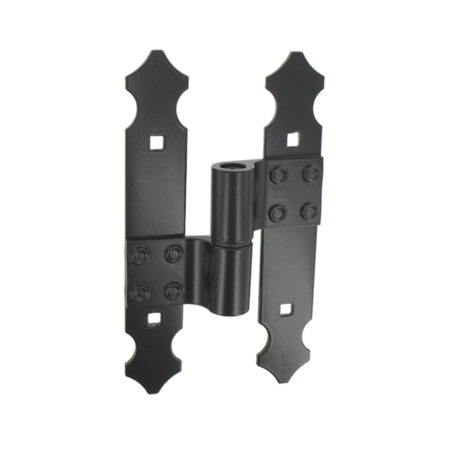

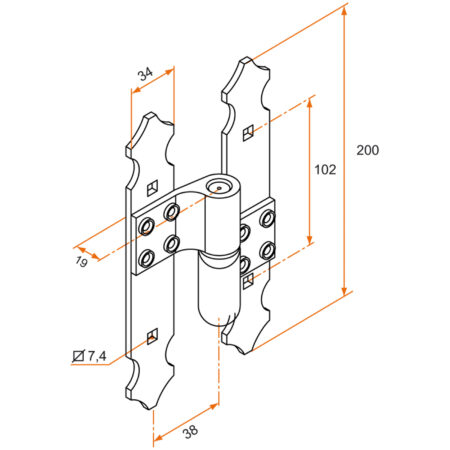

H-shaped hinge with pin – Ø14 – H.200 – 35×4 – 7.5 mm square holes – pin-38 mm

References

Information

Downloads

Place an order

Reference

Information

Downloads

Place an order

Références

SKU	Assembly direction	Finishing stage	Composite part	Pkg	Delay (d)
3PE92076G	LEFT	9005-30%	noir	30	14
3PE92076D	RIGHT	9005-30%	noir	30	14
3PE91071G	LEFT	9016-80%	blanc	30	14
3PE91071D	RIGHT	9016-80%	blanc	30	14
3PE92076GRAL	LEFT		noir	1	14
3PE92076DRAL	RIGHT		noir	1	14
3PE92076GABRAL	gauche		blanc	1	14
3PE92076DABRAL	droite		blanc	1	14
