Hardware Designer & Manufacturer

The accessory that enhances your style

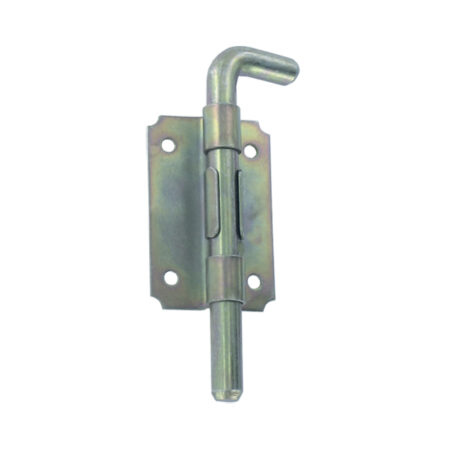

Steel barrel bolt

Access the presentation

Références

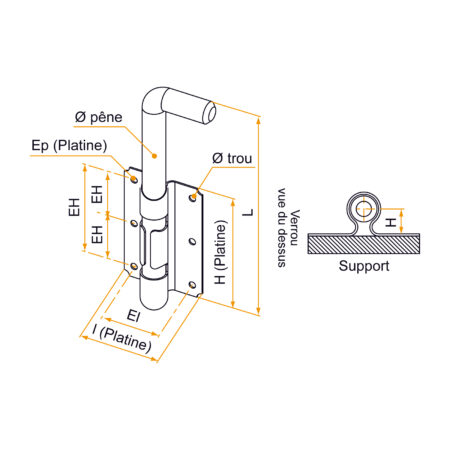

SKU L Ø bolt Plate WxHxTh H Ø hole CD H x CD W C No. of holes Finishing stage Pkg Delay (d)
130340Q 120 10 45x65x1 10.5 4.5 31.5×44.5 28 4 Zn white 10 14
130342Q 145 12 51x80x1 12,5 5 34×60 33 4 Zn white 10 14
130344Q 165 14 60x90x1.2 14 5 45×72 42 6 Zn white 10 21
130346Q 175 16 60x90x1.2 14 5 45×72 42 6 Zn white 10 21
Technical specifications

Downloads

Click on the document name to download it
