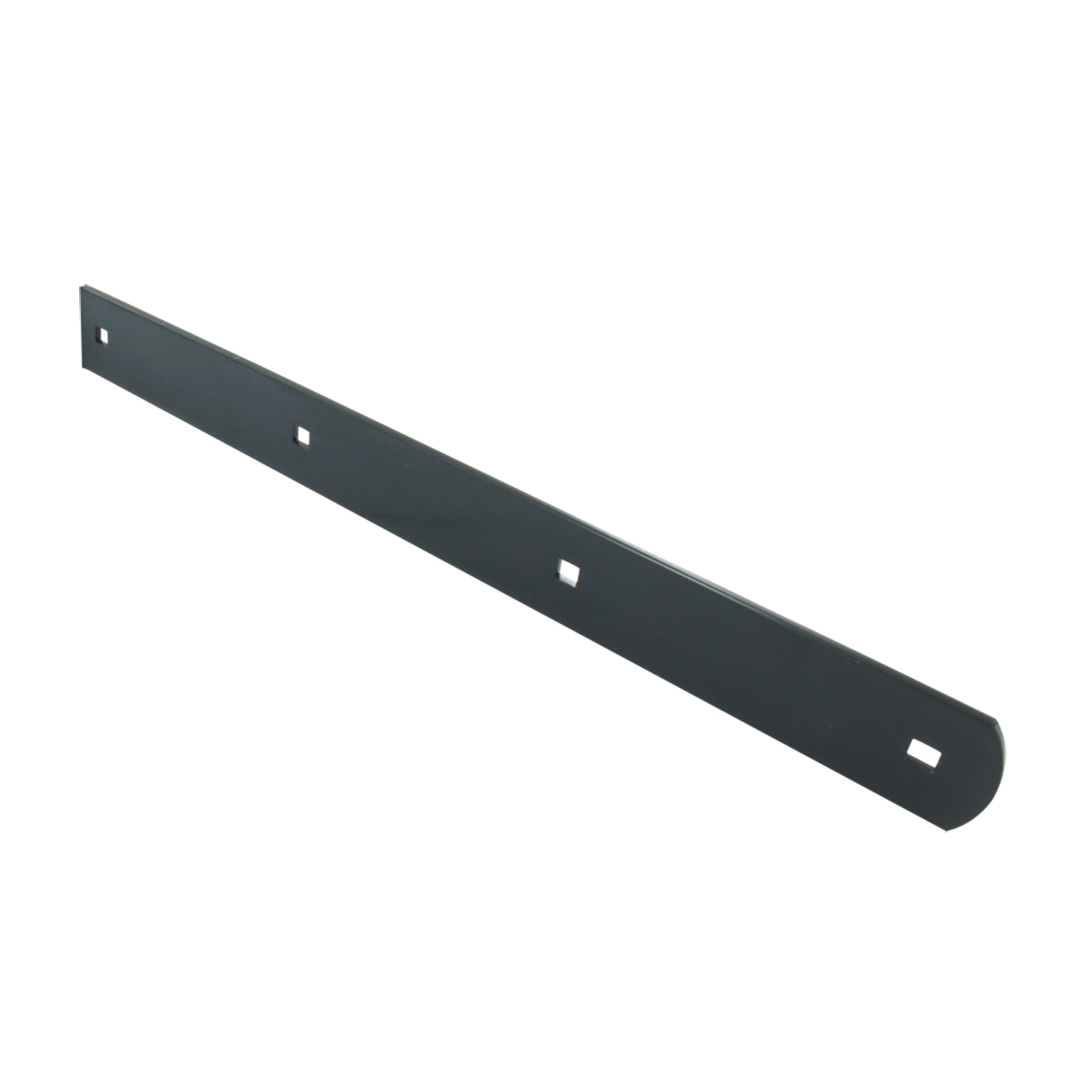

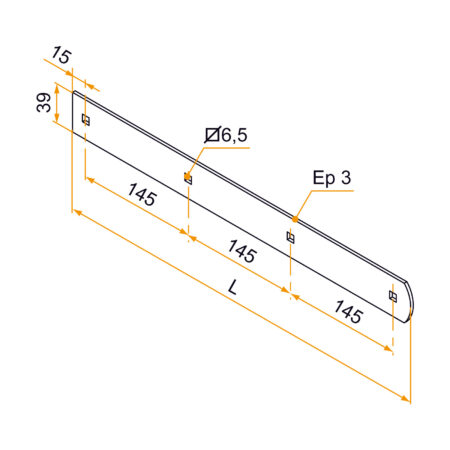

Straight counter strap hinge – round end – 39×3 – 6.5 mm square holes – first hole-15 mm

References

Information

Downloads

Place an order

Reference

Information

Downloads

Place an order

Références

SKU	L	No. of holes	Finishing stage	Pkg	Delay (d)
PDU140N53	180	2	9005-30%	50	14
PDU140B68	180	2	9016-80%	50	21
PDU140RAL	180	2		1	21
PDU141N53	325	3	9005-30%	50	14
PDU141B68	325	3	9016-80%	50	21
PDU141RAL	325	3		1	21
PDU142N53	470	4	9005-30%	50	14
PDU142B68	470	4	9016-80%	50	21
PDU142RAL	470	4		1	21
PDU143N53	615	5	9005-30%	50	14
PDU143B68	615	5	9016-80%	50	21
PDU143RAL	615	5		1	21
PDU144N53	760	6	9005-30%	25	21
PDU144B68	760	6	9016-80%	25	21
PDU144RAL	760	6		1	21
