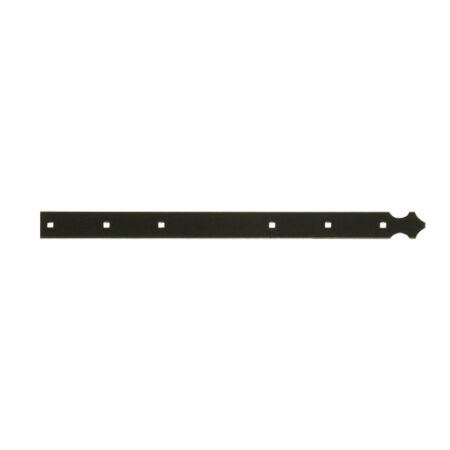

Counter T strap hinge – scalloped end – 1st hole at 15 – 39×3 – 7.5 mm square holes – InviRenov®

References

Information

Downloads

Place an order

Reference

Information

Downloads

Place an order

Références

SKU	L	CD	Finishing stage	No. of holes	Pkg	Delay (d)
PDU051N53	290	135	9005-30%	4	100	21
PDU051B68	290	135	9016-80%	4	100	21
PDU051RAL	290	135		4	1	21
PDU052N53	345	190	9005-30%	4	100	21
PDU052B68	345	190	9016-80%	4	100	21
PDU052RAL	345	190		4	1	21
PDU053N53	471	158	9005-30%	5	50	21
PDU053B68	471	158	9016-80%	5	50	21
PDU053RAL	471	158		5	1	21
PDU054N53	614	153	9005-30%	6	50	21
PDU054B68	614	153	9016-80%	6	50	21
PDU054RAL	614	153		6	1	21
PDU055N53	759	151	9005-30%	7	25	21
PDU055B68	759	151	9016-80%	7	25	21
PDU055RAL	759	151		7	1	21
PDU056N53	905	150	9005-30%	8	25	21
PDU056B68	905	150	9016-80%	8	25	21
PDU056RAL	905	150		8	1	21
