Multipoint lock – OMNiiA

1 composite template with :
– 2 adjustment tabs
– 1 depth indicator
– 3 wedges for the top striker: 3, 4 or 5 mm thick
– 2 wedges for the rods
– 4 screw covers
Cycle count: 100,000.
Made of aluminium. Sophisticated handle design.
Rod guides with composite rings. Position indicators (red/green).

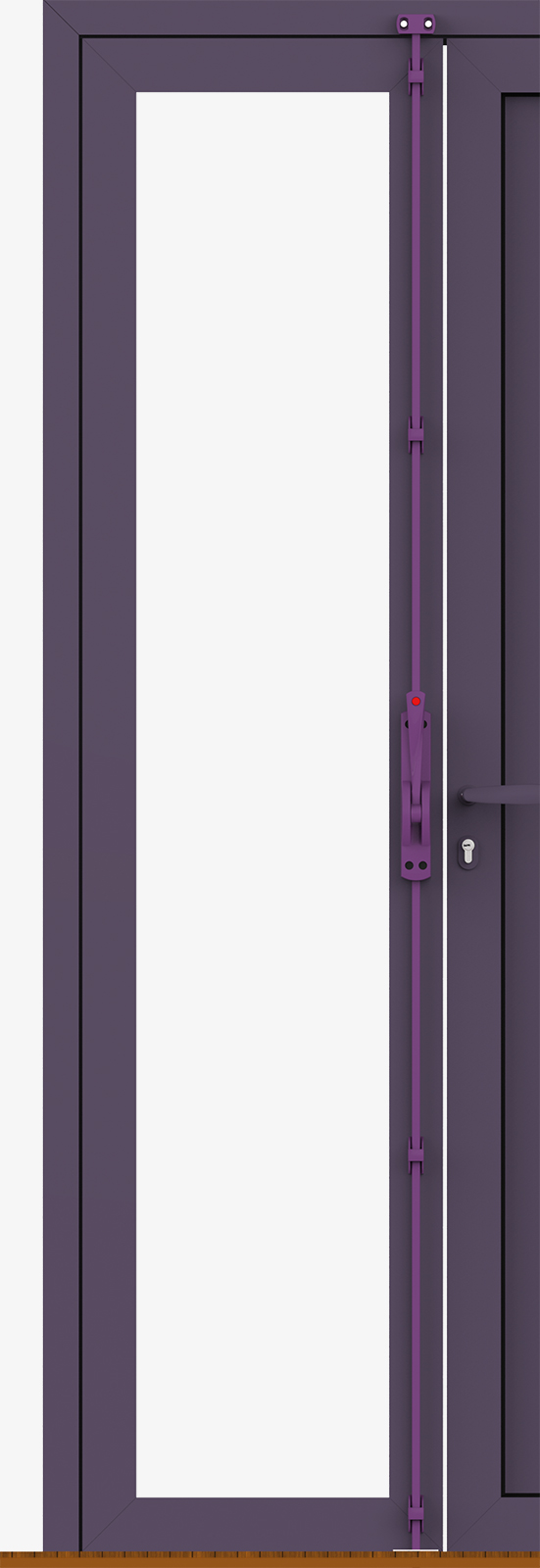

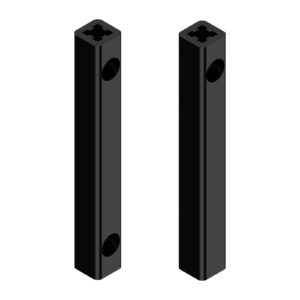

Rod movement: 23 mm. Standard rod lengths: 1250 or 2500 mm.

Installation guide :

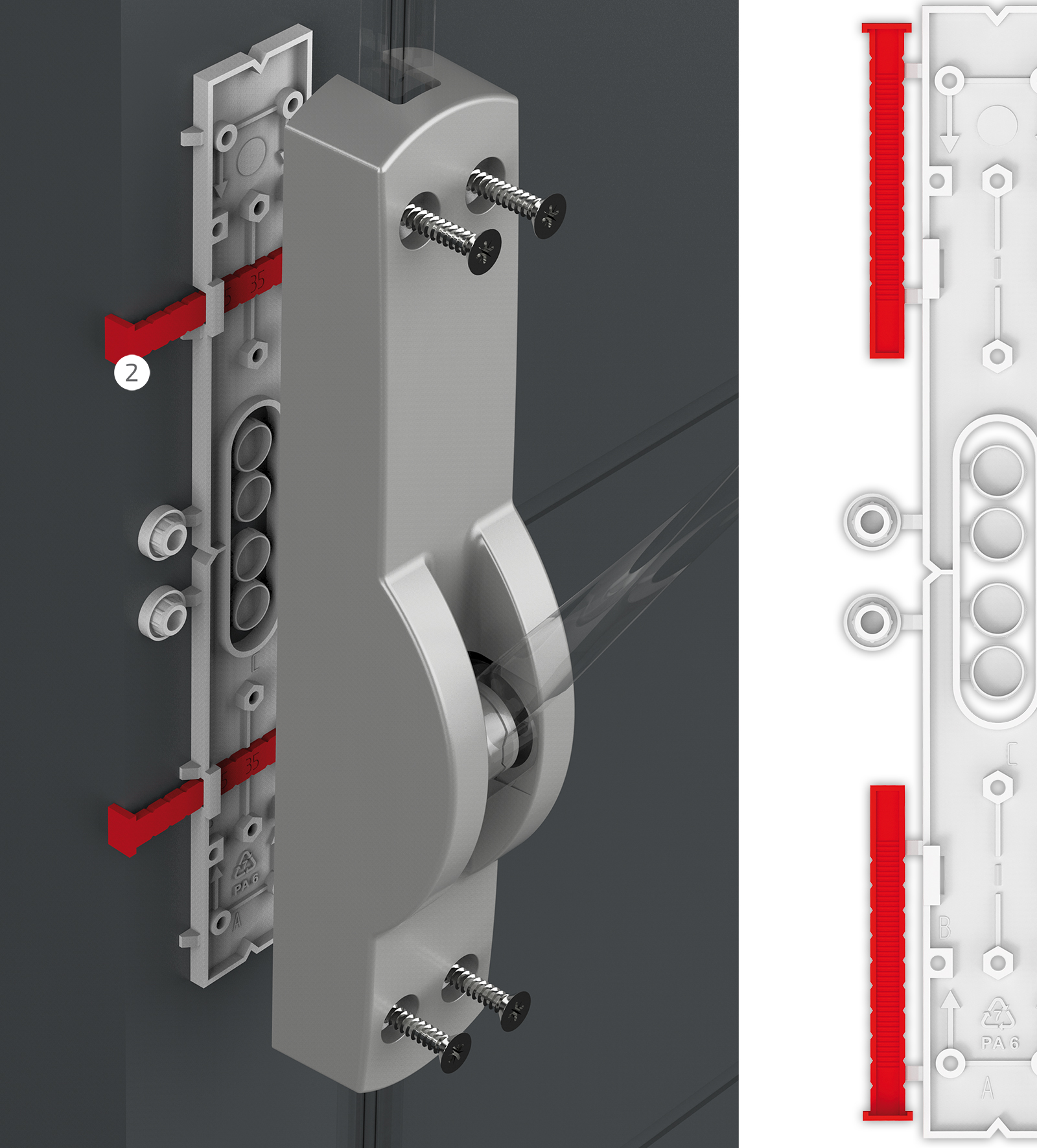

– The 2 tabs allow you to position the various elements on the support without taking measurements.

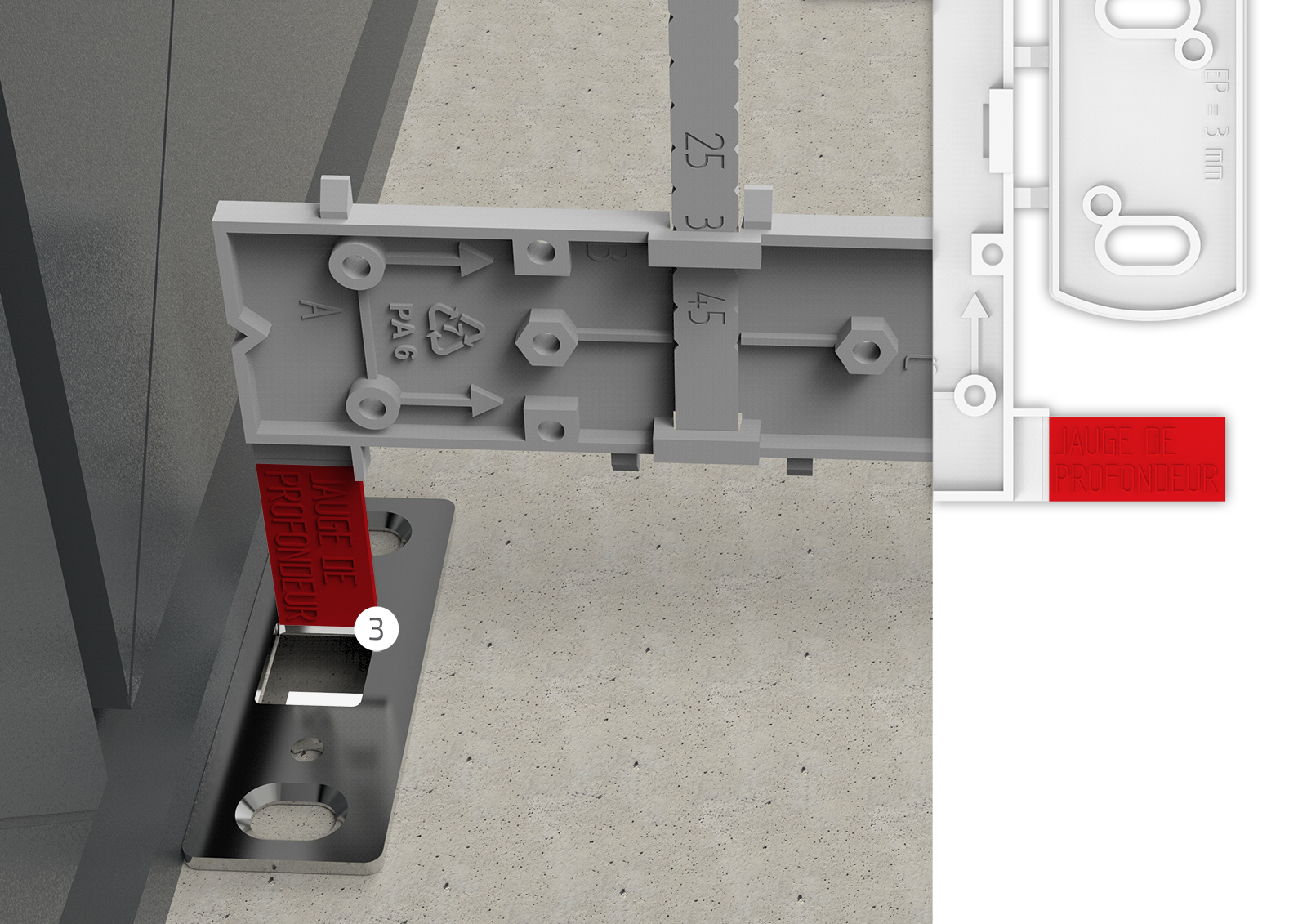

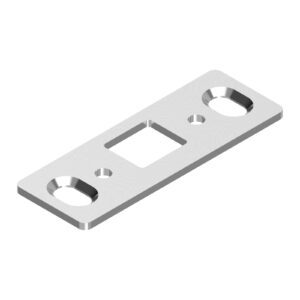

– The depth indicator ensures that the sill and lintel holes for the rod are correct.

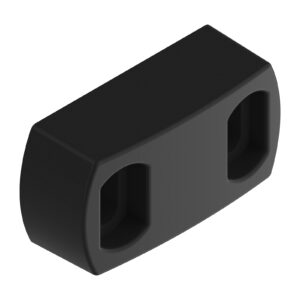

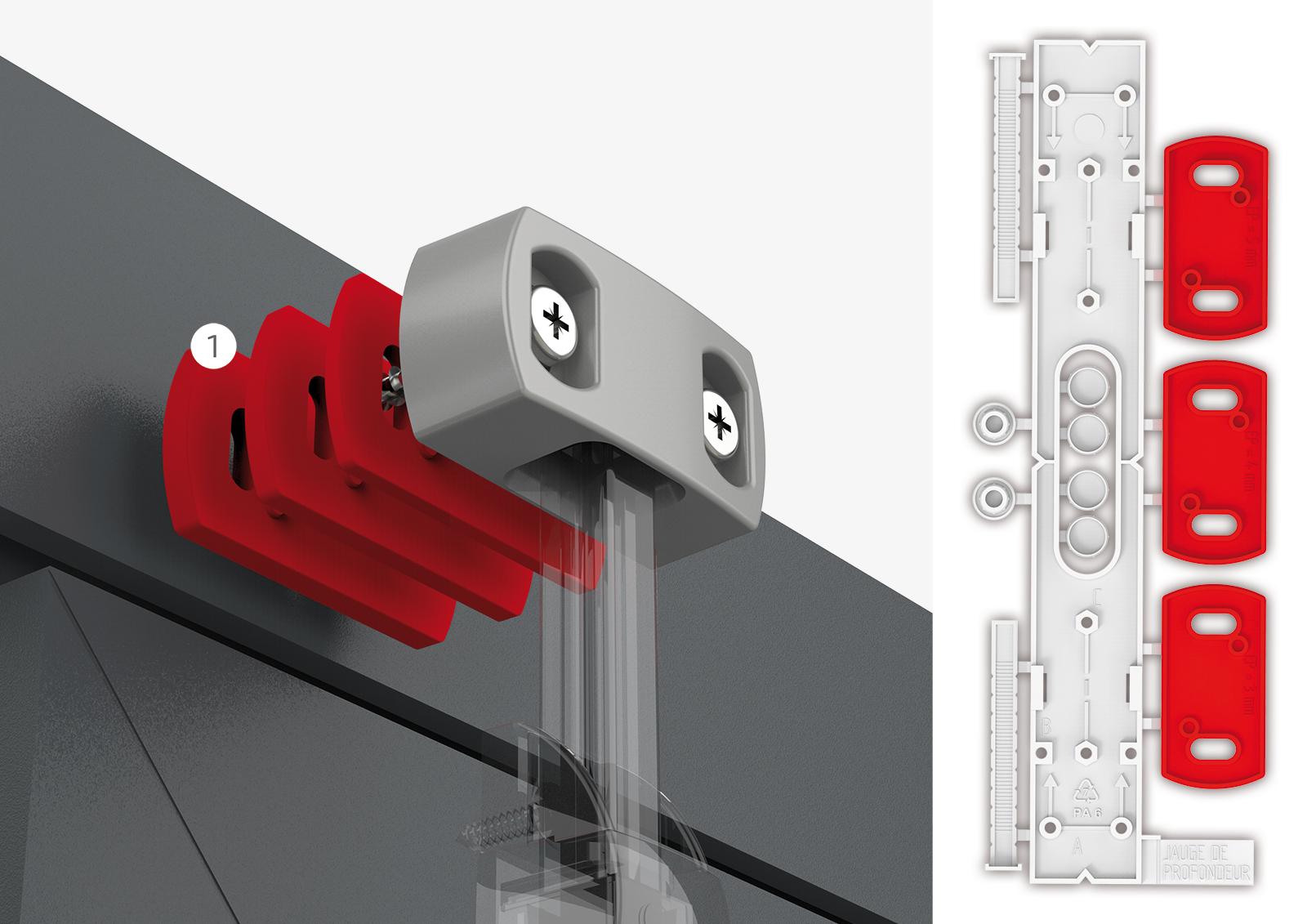

– The wedges on the surface-mounted lintel striker allow the striker to be adjusted on the frame.

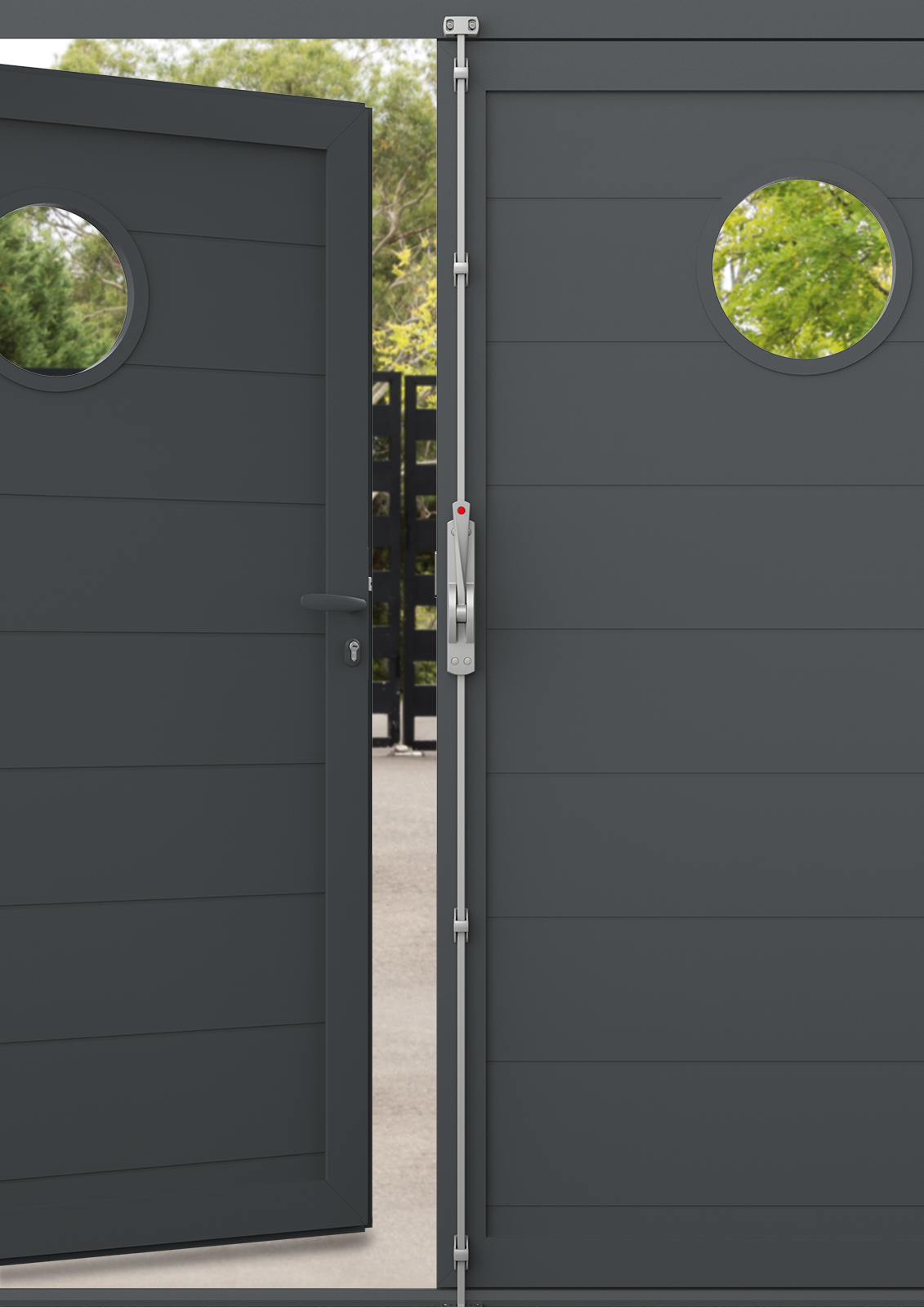

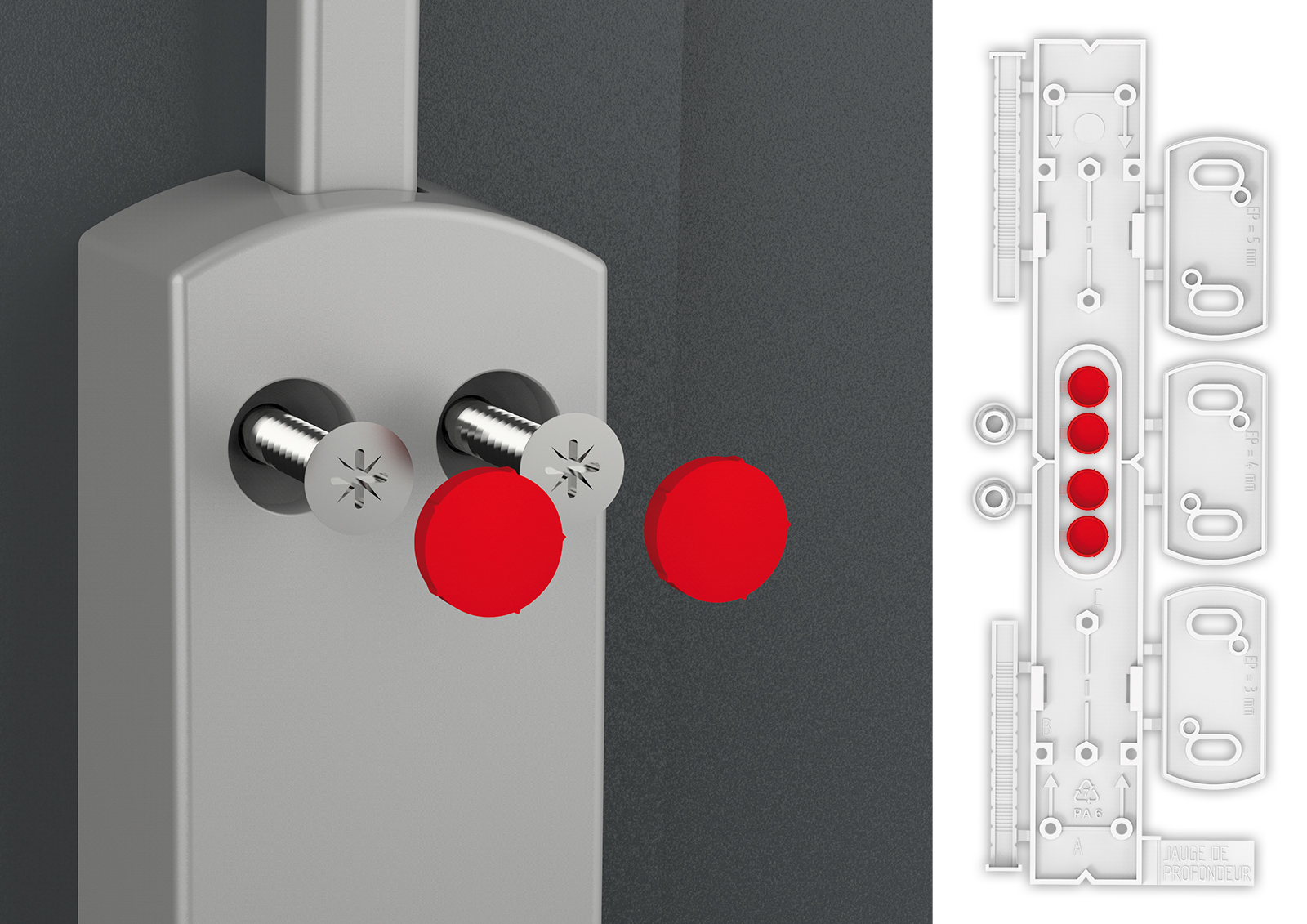

Can be used in place of most lever-operated casement bolt on the market. Screw covers for a neat finish. Can be lacquered to match the opening colour (except for composite parts).

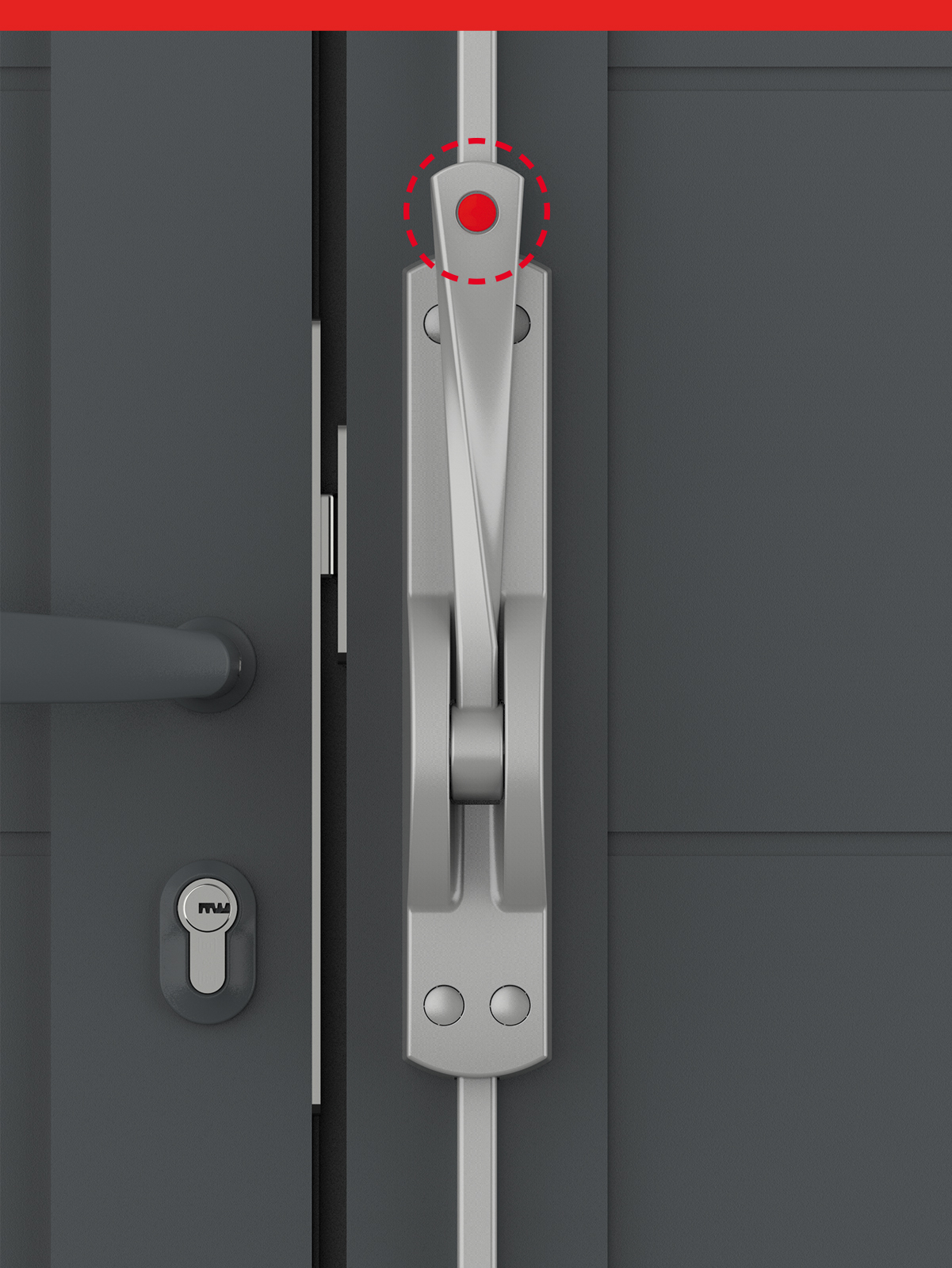

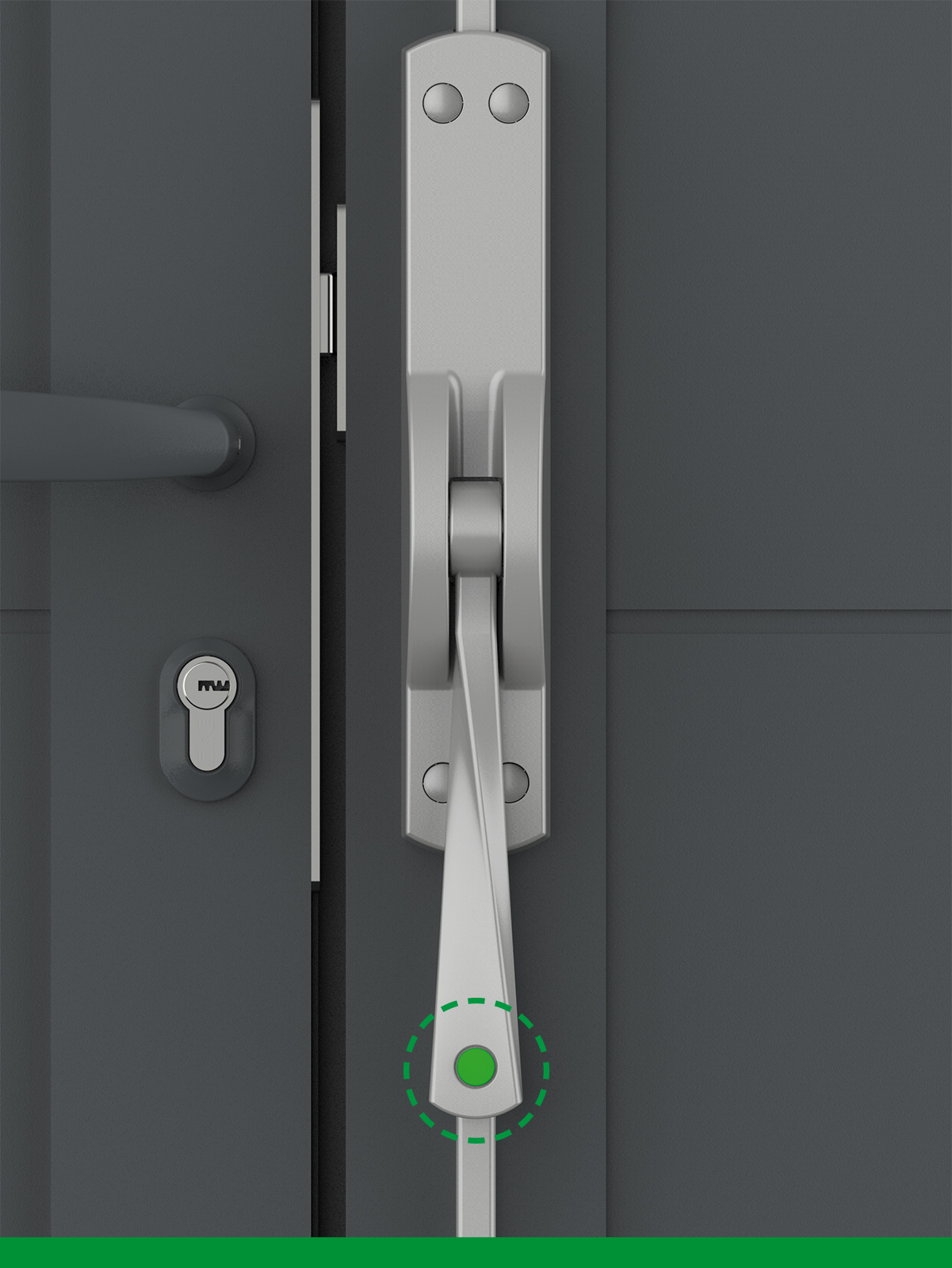

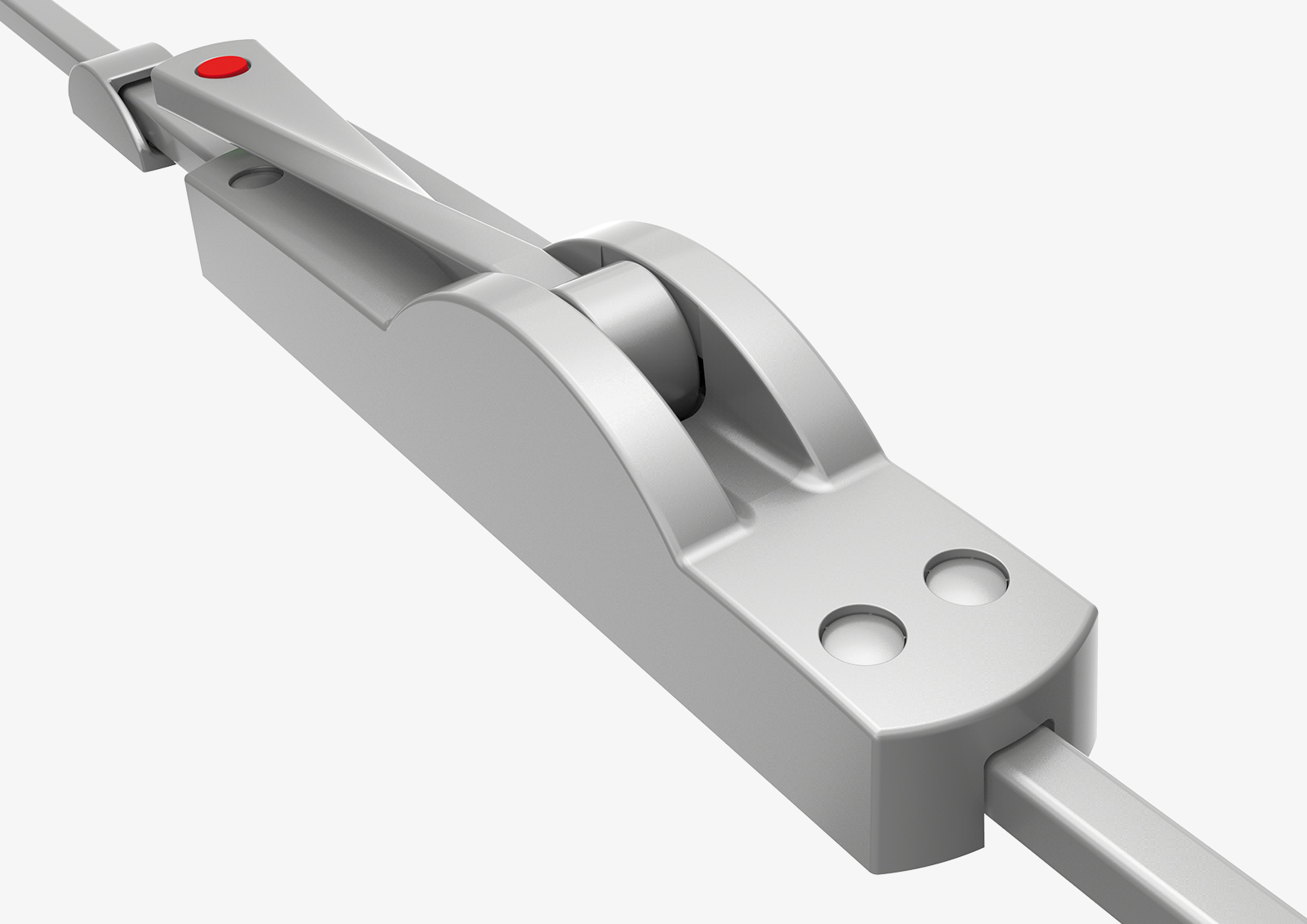

The sophisticated design of the handle makes it truly distinctive. It slides smoothly between the rod and the rod guides, leaving no marks or rattles. You can see whether the casement bolt is open (green) or closed (red).

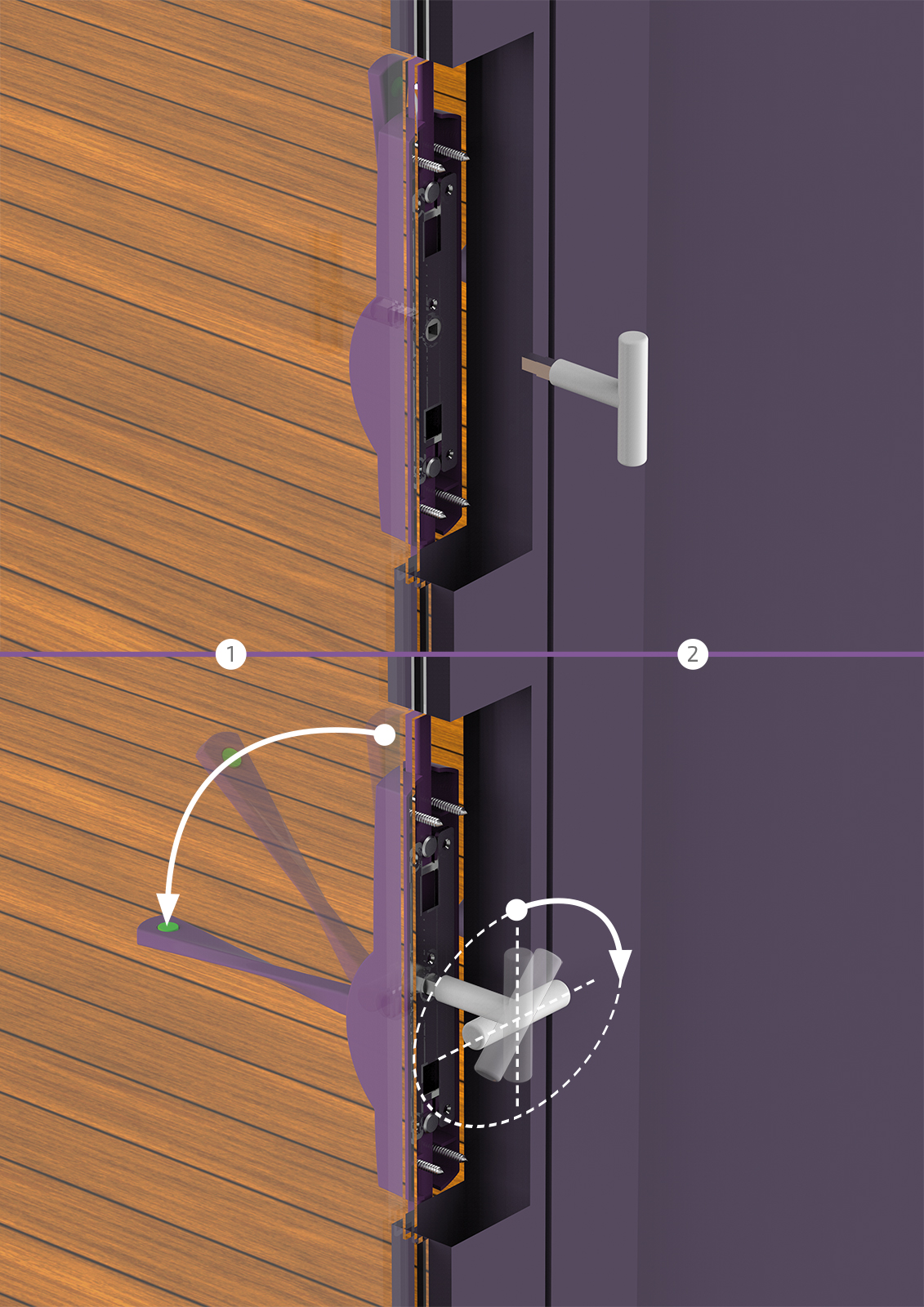

Rods can be adjusted to suit the support and sill height. Can be unlocked from outside the door in case of emergency (7 mm square hole).
