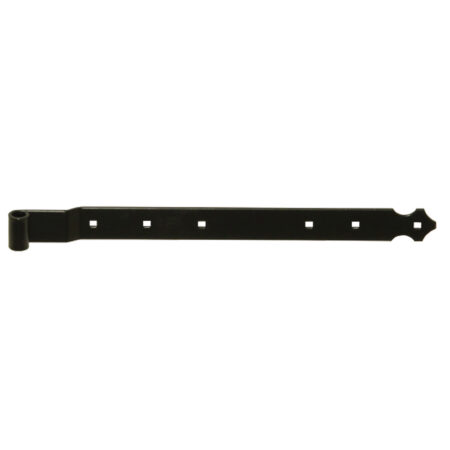

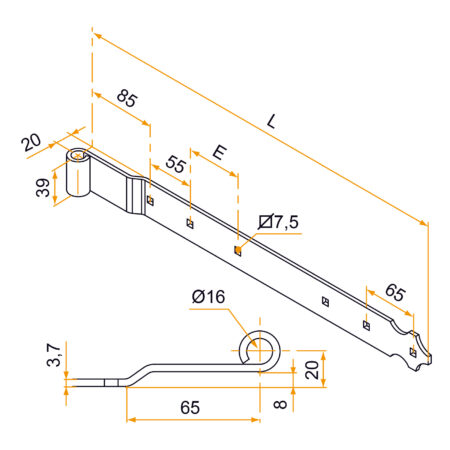

T strap hinge – scalloped end – Ø16 – 39×3.7 – offset 20×85 – 7.5 mm square holes – InviRenov®

References

Information

Downloads

Place an order

Reference

Information

Downloads

Place an order

Références

SKU	L	CD	Finishing stage	No. of holes	Pkg	Delay (d)
PDU094N53	360	135	9005-30%	4	50	21
PDU094B68	360	135	9016-80%	4	50	21
PDU094RAL	360	135		4	1	21
PDU095N53	415	190	9005-30%	4	50	21
PDU095B68	415	190	9016-80%	4	50	21
PDU095RAL	415	190		4	1	21
PDU096N53	541	158	9005-30%	5	25	21
PDU096B68	541	158	9016-80%	5	25	21
PDU096RAL	541	148		5	1	21
PDU097N53	684	153	9005-30%	6	25	21
PDU097B68	684	153	9016-80%	6	25	21
PDU097RAL	684	153		6	1	21
PDU098N53	829	151	9005-30%	7	25	21
PDU098B68	829	151	9016-80%	7	25	21
PDU098RAL	829	151		7	1	21
PDU099N53	975	150	9005-30%	8	25	21
PDU099B68	975	150	9016-80%	8	25	21
PDU099RAL	975	150		8	1	21
