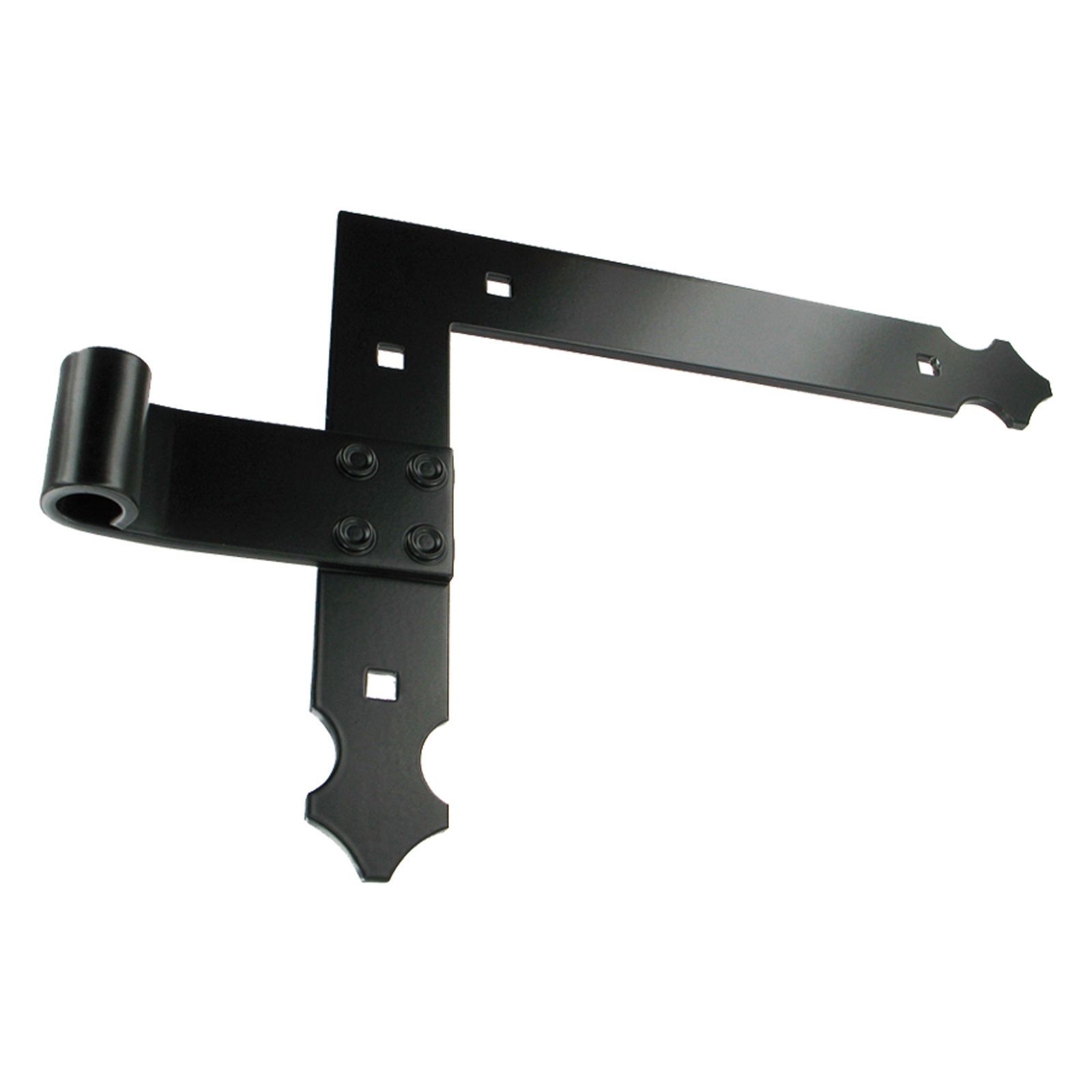

Angle T strap hinge – scalloped end – Ø14 – H.200xL.250 – 35×4 – 7.5 mm square holes – 19×77 offset

References

Information

Downloads

Place an order

Reference

Information

Downloads

Place an order

Références

SKU	Finishing stage	Assembly direction	Pkg	Delay (d)
3PE92056G	9005-30%	LEFT	50	14
3PE92056D	9005-30%	RIGHT	50	14
3PE91051G	9016-80%	LEFT	50	14
3PE91051D	9016-80%	RIGHT	50	14
3PE92056GRAL		LEFT	1	14
3PE92056DRAL		RIGHT	1	14
