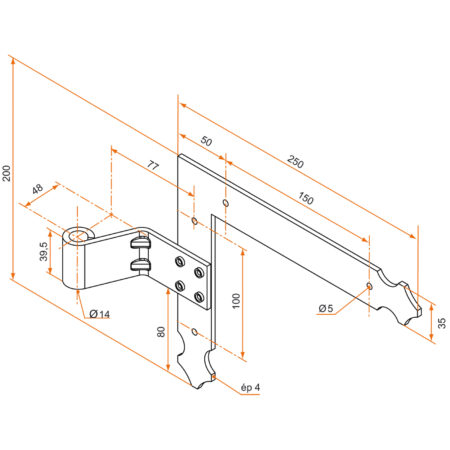

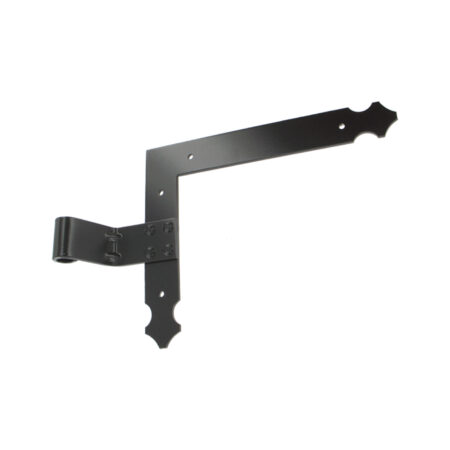

Angle T strap hinge – scalloped end – Ø14 – H.200xL.250 – 35×4 – 5mm round holes – 48×77 offset

References

Information

Downloads

Place an order

Reference

Information

Downloads

Place an order

Références

SKU	Assembly direction	Finishing stage	Pkg	Delay (d)
3PE92061G	LEFT	9005-30%	25	14
3PE91056G	LEFT	9016-80%	25	14
3PE92061D	RIGHT	9005-30%	25	14
3PE91056D	RIGHT	9016-80%	25	14
3PE92061GRAL	LEFT		1	14
3PE92061DRAL	RIGHT		1	14
