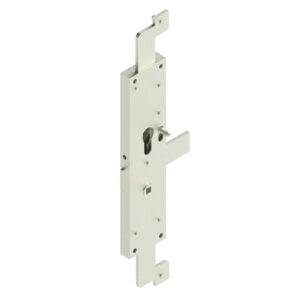

Multipoint lock – CE

Introduction

This lock provides excellent security due to its multi-point locking system.
It can be operated by a double drop ring to reduce space requirements, or by a lever-handle or lever-handle knob for greater ease of operation.

Product advantages

Robust. Suitable for all types of shutters.

Informations techniques

Finishing stage

Locks, rods and accessories in zinc-coated steel.

Description

Blocking is done by key on the outside (half-cylinder- Européen) and by knob on the inside.
Flat or counter-bent top and bottom bolts (for shutters with bars and slats).
25 mm travel with 1/4 turn of follower.
3rd point length 17 mm (short) or 75 mm (long).
7 mm square follower.
Cylinder length to be ordered according to the panel thickness:
– 18 to 27 mm: cylinder 10 + 40
– 28 to 38 mm: cylinder 10 + 50
Lock versions with reverse counter-bent bolts are also available, please consult us for more information.
Pay attention to the lock direction.

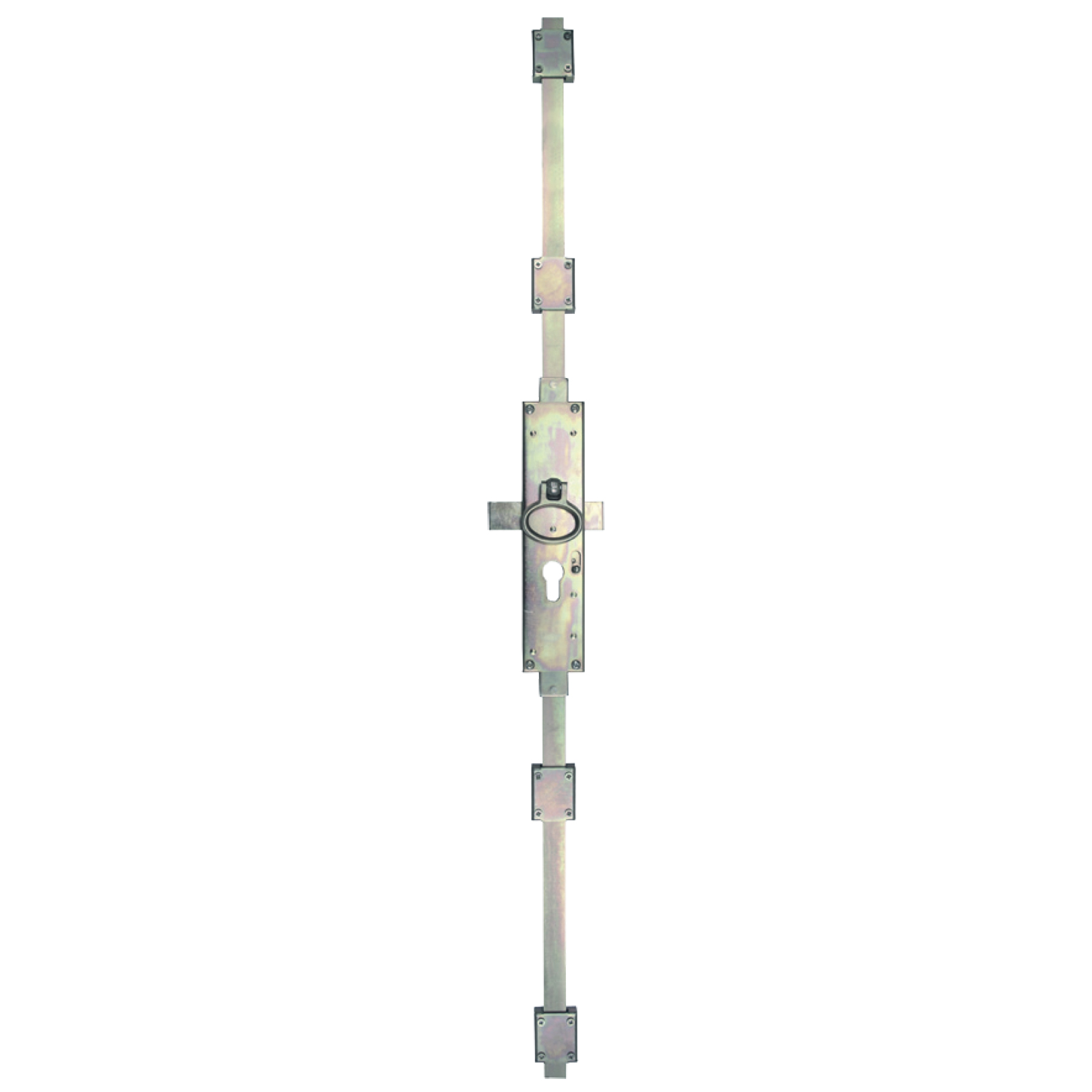

  • EME00030113-CE112201-presentation.jpg
