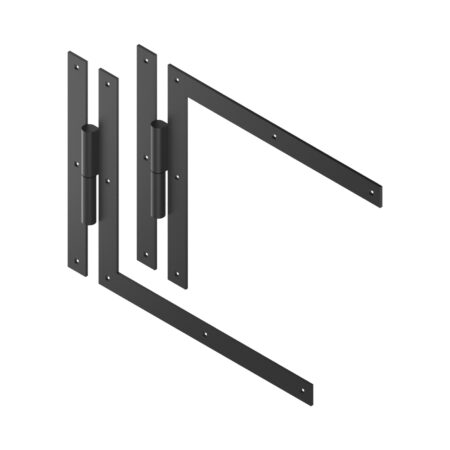

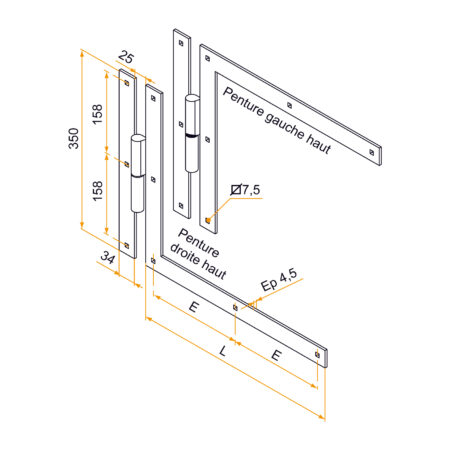

Set of 2 angle T strap hinges – square end – Ø12 – H.350 – 34×4.5 – 7.5 mm square holes

References

Information

Downloads

Place an order

Reference

Information

Downloads

Place an order

Références

SKU	L	Content	CD	No. of holes	Finishing stage	Pkg	Delay (d)
1KI92085G	400	left up + left down	183	3+5	9005-30%	1	21
1KI92085D	400	right up + right down	183	3+5	9005-30%	1	21
1KI92086G	450	left up + left down	138	3+6	9005-30%	1	21
1KI92086D	450	right up + right down	138	3+6	9005-30%	1	21
1KI92087G	500	left up + left down	155	3+6	9005-30%	1	21
1KI92087D	500	right up + right down	155	3+6	9005-30%	1	21
1KI92088G	550	left up + left down	172	3+6	9005-30%	1	21
1KI92088D	550	right up + right down	172	3+6	9005-30%	1	21

Technical specifications

References

Informations

Documents for download

Place an order

Information

Commentaire

Made of steel
Pack composition:
1 high hinge corner hinge
1 low hinge corner hinge

Astuce

The orientation (e.g. left up + left down) of the T strap hinges is given from the outside view (street side).
