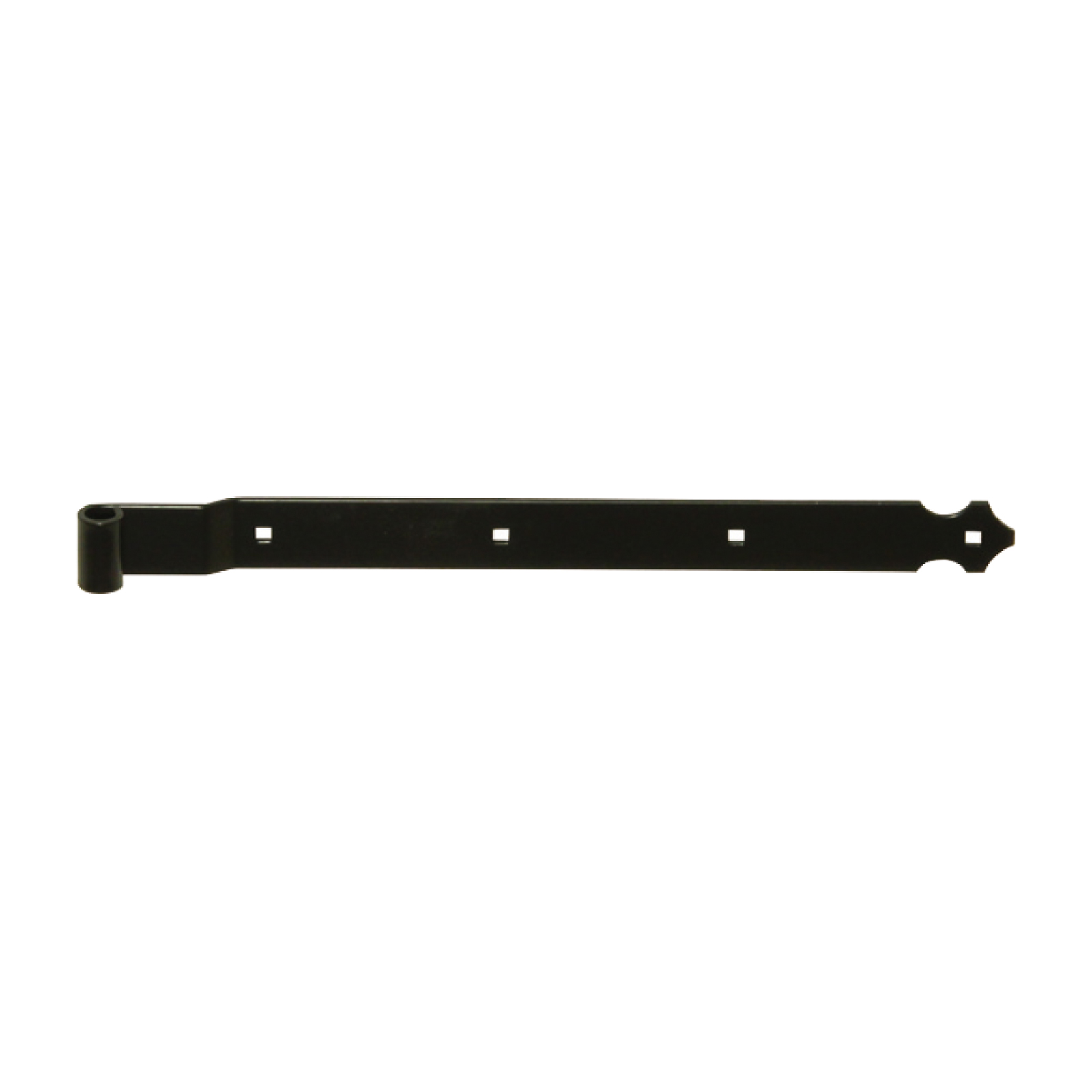

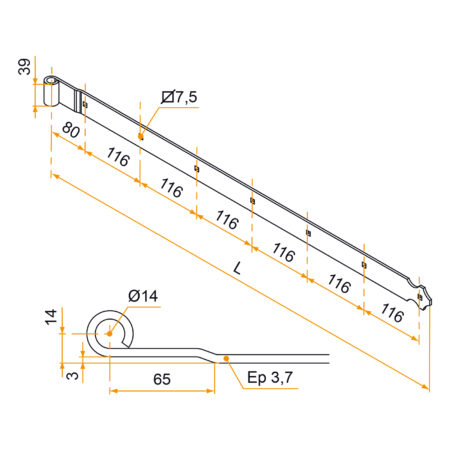

Straight strap hinge – scalloped end – Ø14 – 39×3.7 – 7.5 mm square holes – 14×80 offset

References

Information

Downloads

Place an order

Reference

Information

Downloads

Place an order

Références

SKU	L	No. of holes	Finishing stage	Pkg	Delay (d)
800016R	216	2	9005-30%	50	21
3PD91191	216	2	9016-80%	50	21
800016RRAL	216	2		1	21
800026R	332	3	9005-30%	50	14
3PD91192	332	3	9016-80%	50	21
800026RRAL	332	3		1	21
800036R	448	4	9005-30%	50	14
3PD91193	448	4	9016-80%	50	21
800036RRAL	448	4		1	21
800046R	564	5	9005-30%	25	14
3PD91194	564	5	9016-80%	25	21
800046RRAL	564	5		1	21
800056R	680	6	9005-30%	25	14
3PD91195	680	6	9016-80%	25	21
800056RRAL	680	6		1	21
800066R	796	7	9005-30%	25	14
3PD91196	796	7	9016-80%	25	21
800066RRAL	796	7		1	14
800076R	912	8	9005-30%	25	21
3PD91197	912	8	9016-80%	25	21
3PD92186	1028	9	9005-30%	25	21
3PD91198	1028	9	9016-80%	25	21
3PD92186RAL	1028	9		1	21
