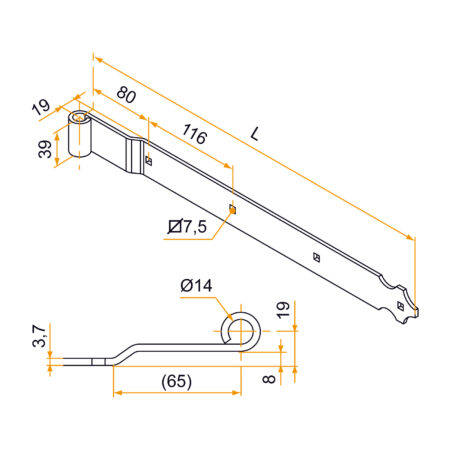

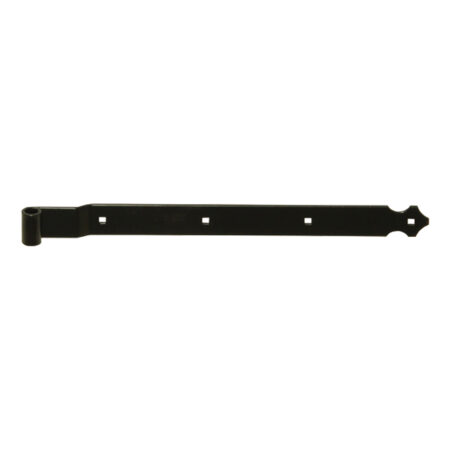

Straight strap hinge – scalloped end – Ø14 – 39×3.7 – 7.5 mm square holes – 19×80 offset

References

Information

Downloads

Place an order

Reference

Information

Downloads

Place an order

Références

SKU	L	No. of holes	Finishing stage	Pkg	Delay (d)
800016	216	2	9005-30%	50	14
8000176	216	2	9016-80%	50	21
800016RAL	216	2		1	21
800026	332	3	9005-30%	50	14
8000276	332	3	9016-80%	50	14
800026RAL	332	3		1	14
800036	448	4	9005-30%	50	14
8000376	448	4	9016-80%	50	14
800036RAL	448	4		1	14
800046	564	5	9005-30%	25	14
8000476	564	5	9016-80%	25	14
800046RAL	564	5		1	14
800056	680	6	9005-30%	25	14
8000576	680	6	9016-80%	25	14
800056RAL	680	6		1	14
800066	796	7	9005-30%	25	14
8000676	796	7	9016-80%	25	14
800066RAL	796	7		1	14
800076	912	8	9005-30%	25	14
8000776	912	8	9016-80%	25	21
800076RAL	912	8		1	21
800086	1028	9	9005-30%	25	21
8000876	1028	9	9016-80%	25	21
800086RAL	1028	9		1	21
