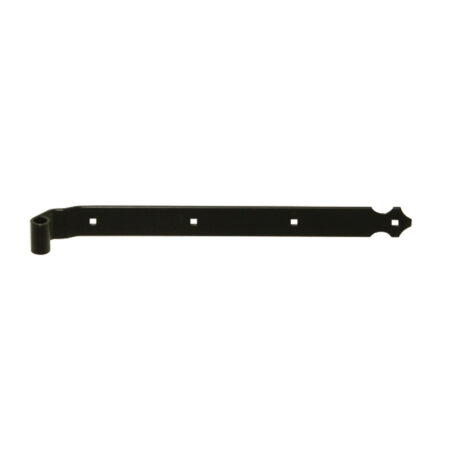

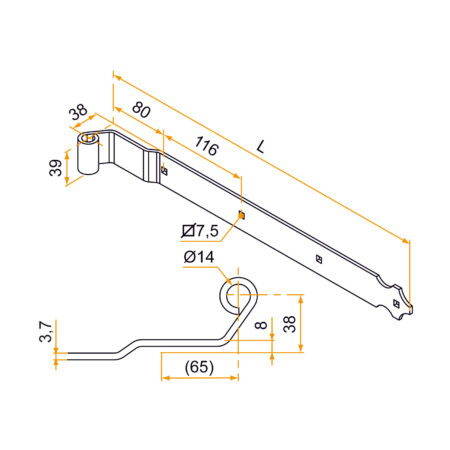

Straight strap hinge – scalloped end – Ø14 – 39×3.7 – 7.5 mm square holes – 38×80 offset

References

Information

Downloads

Place an order

Reference

Information

Downloads

Place an order

Références

SKU	L	No. of holes	Finishing stage	Pkg	Delay (d)
800018	216	2	9005-30%	50	21
8000196	216	2	9016-80%	50	21
800018RAL	216	2		1	21
8000296	332	3	9016-80%	50	21
800028	332	3	9005-30%	50	21
800028RAL	332	3		1	21
800038	448	4	9005-30%	25	21
8000396	448	4	9016-80%	25	21
800038RAL	448	4		1	21
800048	564	5	9005-30%	25	21
8000496	564	5	9016-80%	25	21
800048RAL	564	5		1	21
800058	680	6	9005-30%	15	21
8000596	680	6	9016-80%	15	21
800058RAL	680	6		1	21
