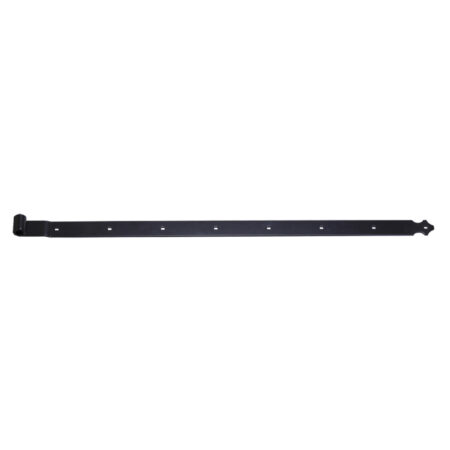

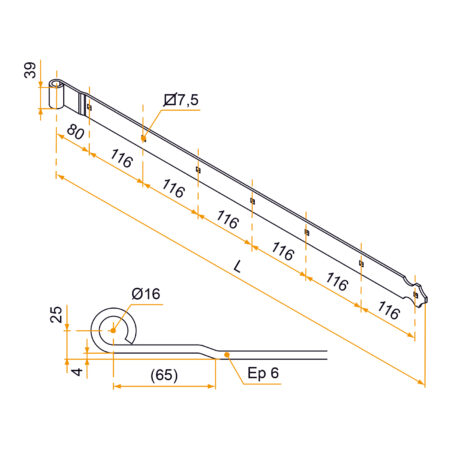

Straight strap hinge – scalloped end – Ø16 – 39×6 – 7.5 mm square holes – 25×80 offset

References

Information

Downloads

Place an order

Reference

Information

Downloads

Place an order

Références

SKU	L	No. of holes	Finishing stage	Pkg	Delay (d)
3PD92220	912	8	9005-30%	15	21
3PD91231	912	8	9016-80%	15	21
3PD92220RAL	912	8		1	21
3PD92221	1028	9	9005-30%	15	21
3PD91232	1028	9	9016-80%	15	21
3PD92221RAL	1028	9		1	21
3PD92222	1144	10	9005-30%	10	21
3PD91233	1144	10	9016-80%	10	21
3PD92222RAL	1144	10		1	21
3PD92223	1260	11	9005-30%	10	21
3PD91234	1260	11	9016-80%	10	21
3PD92224	1376	12	9005-30%	10	21
3PD91235	1376	12	9016-80%	10	21
3PD92224RAL	1376	12		1	21

Technical specifications

References

Informations

Documents for download

Place an order

Information

Commentaire

Made of aluminium

Astuce

This product can be better on large-sized leaf such as garage doors with French opening.
