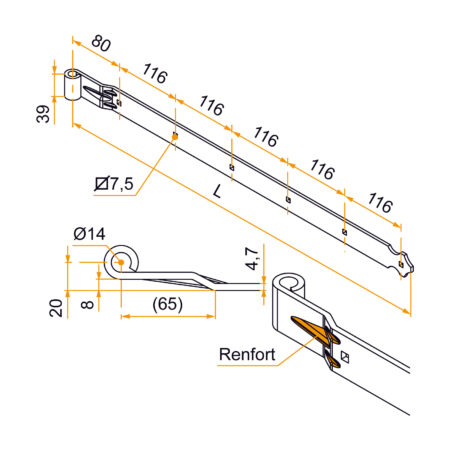

Reinforced straight strap hinge – scalloped end – Ø14 – 39×4.7 – 7.5 mm square holes – 20×80 offset

References

Information

Downloads

Place an order

Reference

Information

Downloads

Place an order

Références

SKU	L	No. of holes	Finishing stage	Pkg	Delay (d)
3PD92225	216	2	9005-30%	50	21
3PD91236	216	2	9016-80%	50	21
3PD92226	332	3	9005-30%	50	21
3PD91237	332	3	9016-80%	50	21
3PD92226RAL	332	3		1	21
3PD92227	448	4	9005-30%	25	21
3PD91238	448	4	9016-80%	25	21
3PD92227RAL	448	4		1	21
3PD92228	564	5	9005-30%	25	21
3PD91239	564	5	9016-80%	25	21
3PD92228RAL	564	5		1	21
3PD92229	680	6	9005-30%	25	21
3PD91240	680	6	9016-80%	25	21
3PD92229RAL	680	6		1	21
3PD92230	796	7	9005-30%	25	21
3PD91241	796	7	9016-80%	25	21
3PD92231	912	8	9005-30%	25	21
3PD91242	912	8	9016-80%	25	21
3PD92232	1028	9	9005-30%	20	21
3PD91243	1028	9	9016-80%	20	21

Technical specifications

References

Informations

Documents for download

Place an order

Information

Commentaire

Made of aluminium.
To be used for single shutter.

Astuce

Recommended for the automation of under lintel swing shutters with operating arms and garage doors.
For other automations, please contact us.
