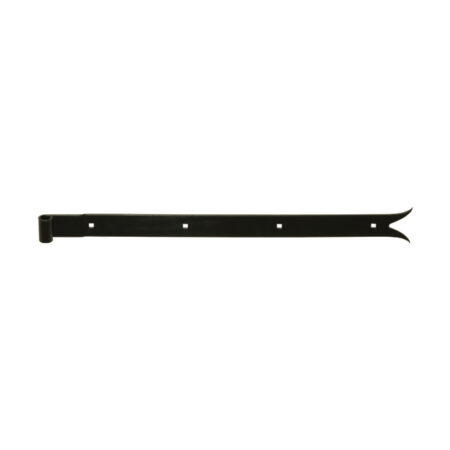

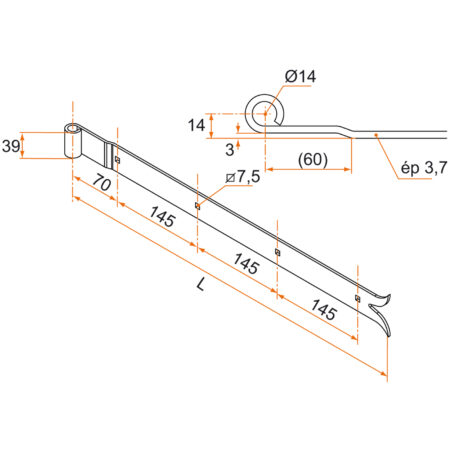

Straight strap hinge – fish tail – Ø14 – 39×3.7 – 7.5 mm square holes – 14×70 offset

References

Information

Downloads

Place an order

Reference

Information

Downloads

Place an order

Références

SKU	L	No. of holes	Finishing stage	Pkg	Delay (d)
800010J	270	2	9005-30%	25	14
8000136J	270	2	9016-80%	25	21
800010JRAL	270	2		1	21
800020J	415	3	9005-30%	25	14
8000236J	415	3	9016-80%	25	21
800020JRAL	415	3		1	21
800030J	560	4	9005-30%	25	14
8000336J	560	4	9016-80%	25	21
800030JRAL	560	4		1	21
800040J	705	5	9005-30%	25	14
8000436J	705	5	9016-80%	25	21
800040JRAL	705	5		1	21
800050J	850	6	9005-30%	25	21
8000536J	850	6	9016-80%	15	21
800060J	995	7	9005-30%	25	21
8000636J	995	7	9016-80%	25	21
