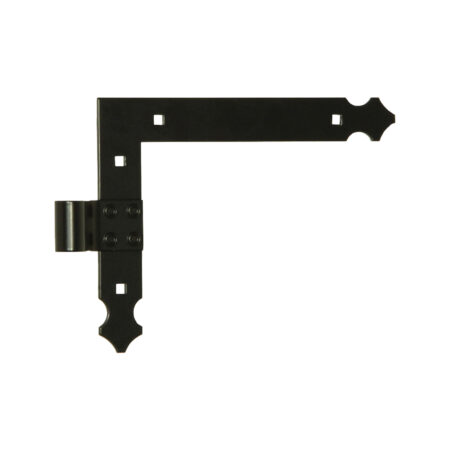

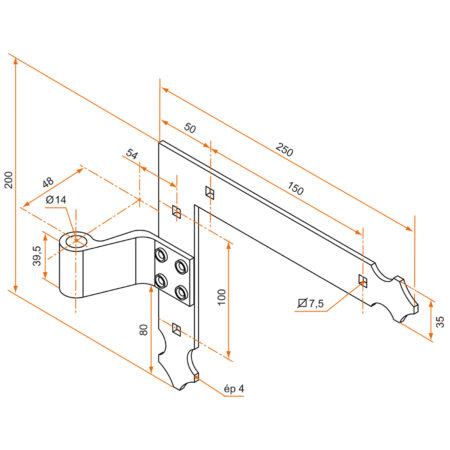

Angle T strap hinge – scalloped end – Ø14 – H.200xL.250 – 35×4 – 7.5 mm square holes – 48×54 offset

References

Information

Downloads

Place an order

Reference

Information

Downloads

Place an order

Références

SKU	Finishing stage	Assembly direction	Pkg	Delay (d)
3PE92070G	9005-30%	LEFT	25	14
3PE92070D	9005-30%	RIGHT	25	14
3PE91065G	9016-80%	LEFT	25	14
3PE91065D	9016-80%	RIGHT	25	14
3PE92070GRAL		LEFT	1	14
3PE92070DRAL		RIGHT	1	14
