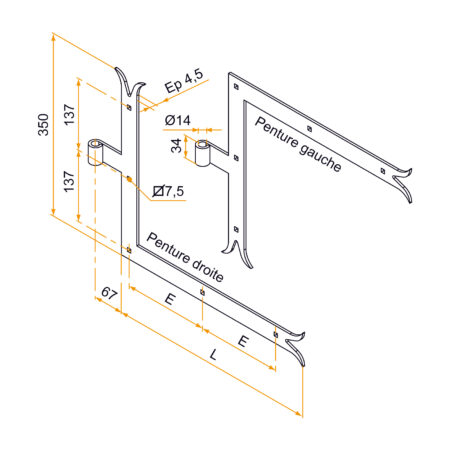

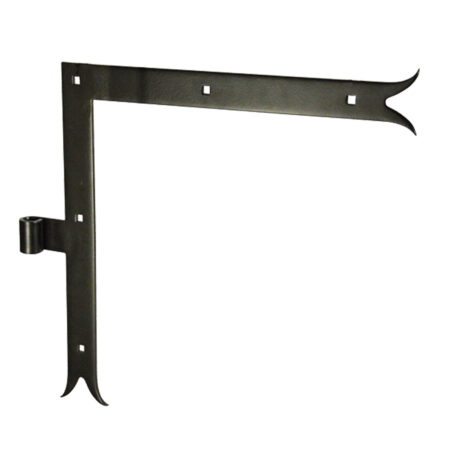

Set of 2 angle T strap hinges – fish tail – Ø14 – H.350 – 34×4.5 – 7.5 mm square holes – offset 67

References

Information

Downloads

Place an order

Reference

Information

Downloads

Place an order

Références

SKU	L	CD	No. of holes	Finishing stage	Pkg	Delay (d)
1KI92145	400	162	5	9005-30%	1	21
1KI92146	500	212	5	9005-30%	1	21

Technical specifications
