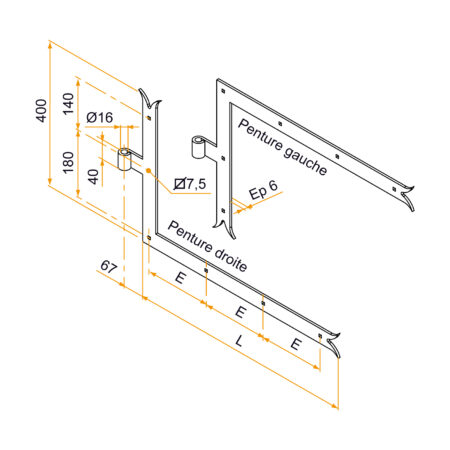

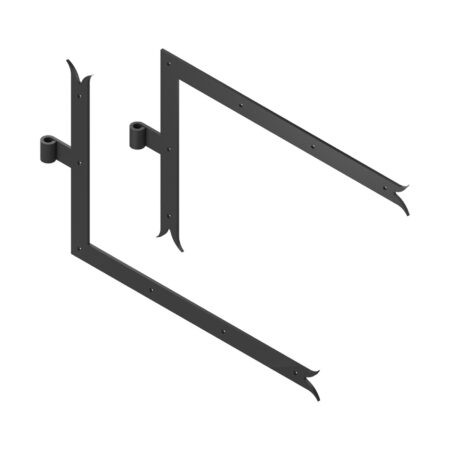

Set of 2 angle T strap hinges – fish tail – Ø16 – H.400 – 40×6 – 7.5 mm square holes – offset 67

References

Information

Downloads

Place an order

Reference

Information

Downloads

Place an order

Références

SKU	L	CD	No. of holes	Finishing stage	Pkg	Delay (d)
1KI92149	600	175	6	9005-30%	1	21
1KI92150	800	180	7	9005-30%	1	21

Technical specifications
