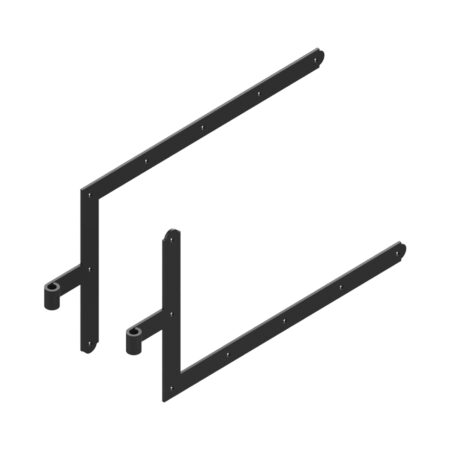

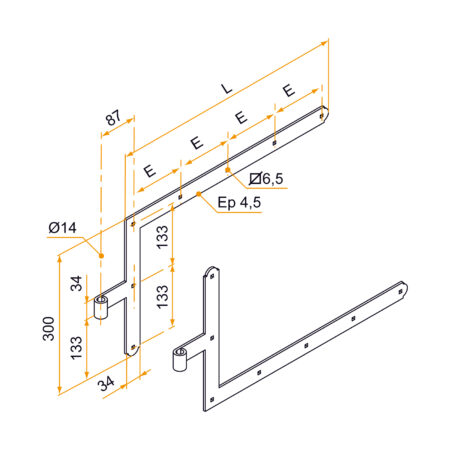

Set of 2 angle T strap hinges – round end – Ø14 – H.300 – 34×4.5 – 6.5 mm square holes – offset 87

References

Information

Downloads

Place an order

Reference

Information

Downloads

Place an order

Références

SKU	L	CD	No. of holes	Finishing stage	Pkg	Delay (d)
1KI92191	300	133	5	9005-30%	1	21
1KI92192	400	122	6	9005-30%	1	21
1KI92193	500	116.5	7	9005-30%	1	21
1KI92194	600	141,5	7	9005-30%	1	21
1KI92195	700	133	8	9005-30%	1	21

Technical specifications
