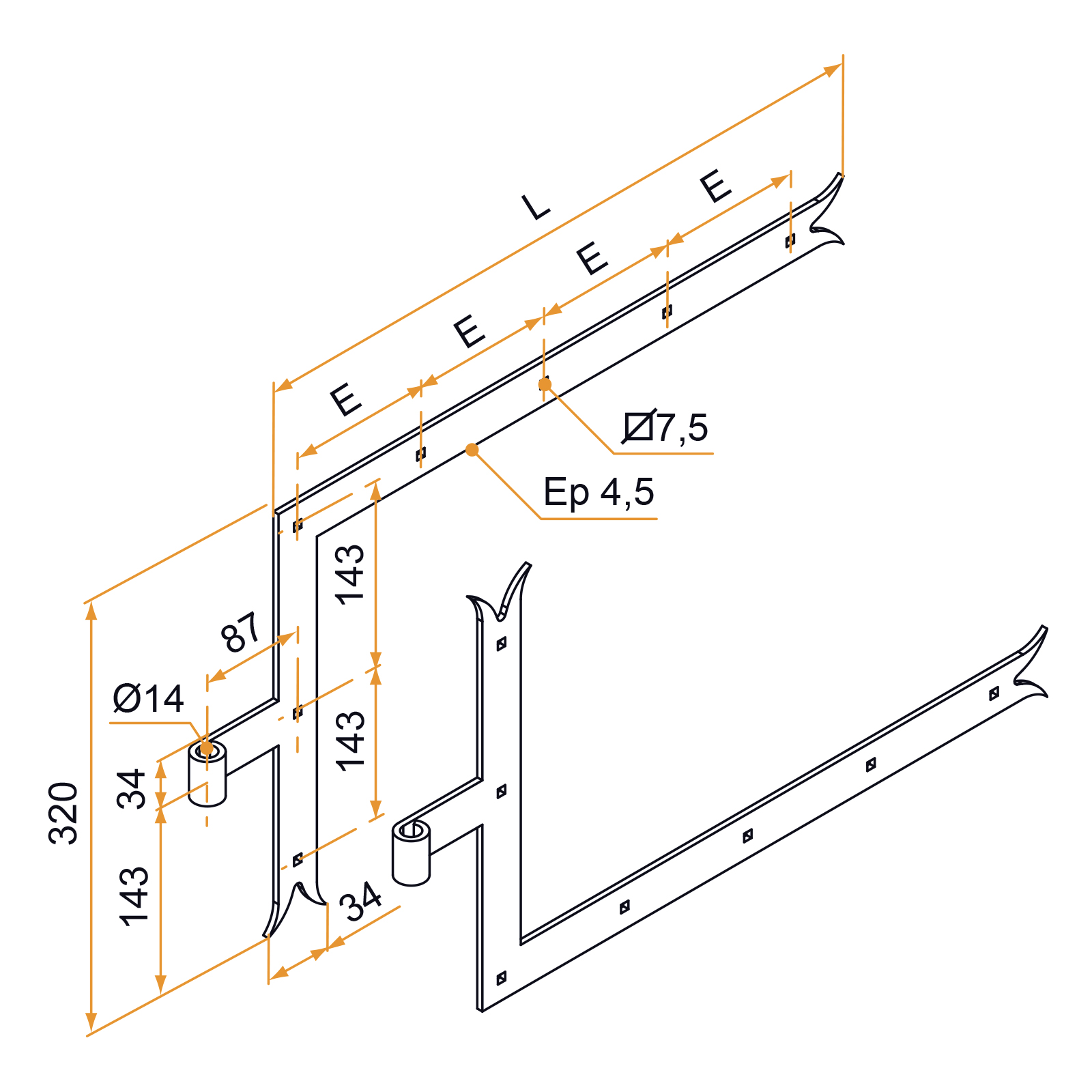

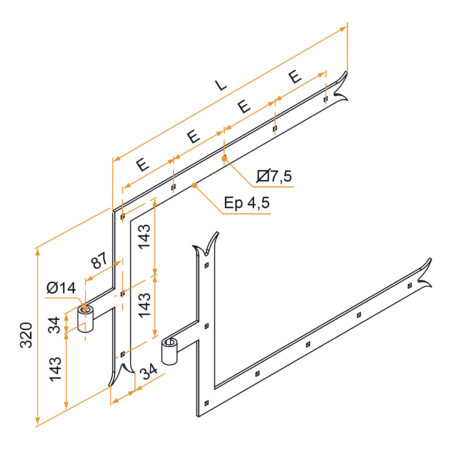

Set of 2 angle T strap hinges – fish tail – Ø14 – H.320 – 34×4.5 – 6.5 mm square holes – offset 87

References

Information

Downloads

Place an order

Reference

Information

Downloads

Place an order

Références

SKU	L	CD	No. of holes	Finishing stage	Pkg	Delay (d)
1KI92203	300	118	5	9005-30%	1	21
1KI92204	400	112	6	9005-30%	1	21
1KI92205	500	109	7	9005-30%	1	21
1KI92206	600	134	7	9005-30%	1	21
1KI92207	700	127	8	9005-30%	1	21

Technical specifications
