Références
| SKU | L | Cylinder passage | Finishing stage | End cap material | End cap color | Pkg | Delay (d) |
|---|---|---|---|---|---|---|---|
| WG592010 | 2500 | Yes | 9005-30% | Composite | black | 1 | 7 |
| WG591010 | 2500 | Yes | 9016-80% | Composite | white | 1 | 7 |
| WG590010SAT | 2500 | Yes | 9010-30% | Composite | white | 1 | 7 |
| WG5XX010AN | 2500 | Yes |
|
Composite | black | 1 | 21 |
| WG5XX010 | 2500 | Yes |
|
Composite | white | 1 | 21 |
| WG5XX010EA | 2500 | Yes |
|
aluminum | multi-RAL | 1 | 21 |
| WG592030 | 2500 | No | 9005-30% | Composite | black | 1 | 7 |
| WG591030 | 2500 | No | 9016-80% | Composite | white | 1 | 7 |
| WG590030SAT | 2500 | No | 9010-30% | Composite | white | 1 | 14 |
| WG5XX030AN | 2500 | No |
|
Composite | black | 1 | 21 |
| WG5XX030 | 2500 | No |
|
Composite | white | 1 | 21 |
| WG592020 | 3000 | Yes | 9005-30% | Composite | black | 1 | 7 |
| WG591020 | 3000 | Yes | 9016-80% | Composite | white | 1 | 7 |
| WG590020SAT | 3000 | Yes | 9010-30% | Composite | white | 1 | 7 |
| WG5XX020AN | 3000 | Yes |
|
Composite | black | 1 | 21 |
| WG5XX020 | 3000 | Yes |
|
Composite | white | 1 | 21 |
Information
Commentaire

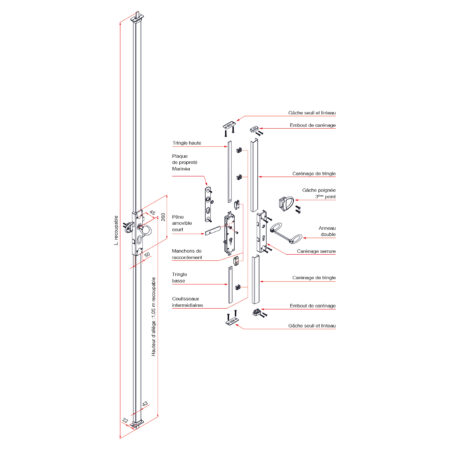

One 3-point lock (short horizontal bolt)
2 aluminium rods:
top and bottom
2 connecting sleeves
2 threshold and lintel strikers
One 3rd-point handle striker
1 lock fairing (with or without cylinder passage)
1 rod fairing supplied in 2 adjustable parts ( sill height 1.05m)
2 composite or aluminium fairing end caps
1 fixed double ring
1 Marinéa cover plate
3 intermediate rod guides (2 for L=2500, 3 for L=3000)
Screws and bolts
2 aluminium rods:
top and bottom
2 connecting sleeves
2 threshold and lintel strikers
One 3rd-point handle striker
1 lock fairing (with or without cylinder passage)
1 rod fairing supplied in 2 adjustable parts ( sill height 1.05m)
2 composite or aluminium fairing end caps
1 fixed double ring
1 Marinéa cover plate
3 intermediate rod guides (2 for L=2500, 3 for L=3000)
Screws and bolts
Astuce
You can order the removable 3rd point long bolt for Multiréverso Composite lock.
