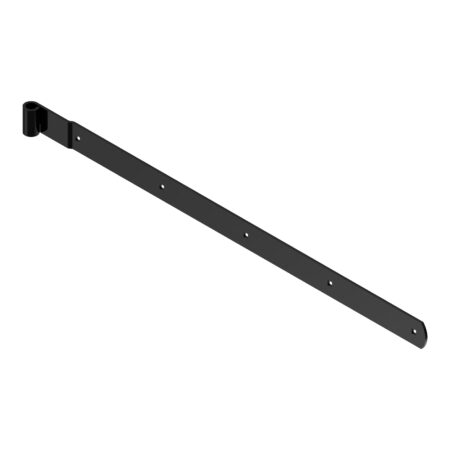

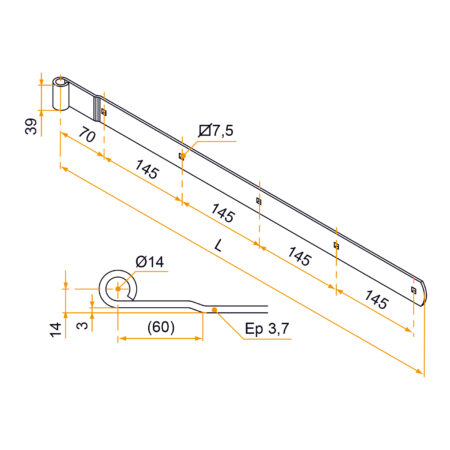

StraighT strap hinge – round end – Ø14 – 39×3.7 – 7.5 mm square holes – 14×70 offset

References

Information

Downloads

Place an order

Reference

Information

Downloads

Place an order

Références

SKU	L	No. of holes	Finishing stage	Pkg	Delay (d)
PDU199N53	235	2	9005-30%	50	21
PDU199B68	235	2	9016-80%	50	21
PDU199RAL	235	2		1	21
PDU192N53	380	3	9005-30%	50	21
PDU192B68	380	3	9016-80%	50	21
PDU192RAL	380	3		1	21
PDU193N53	525	4	9005-30%	25	21
PDU193B68	525	4	9016-80%	25	21
PDU193RAL	525	4		1	21
PDU194N53	670	5	9005-30%	25	21
PDU194B68	670	5	9016-80%	25	21
PDU194RAL	670	5		1	21
