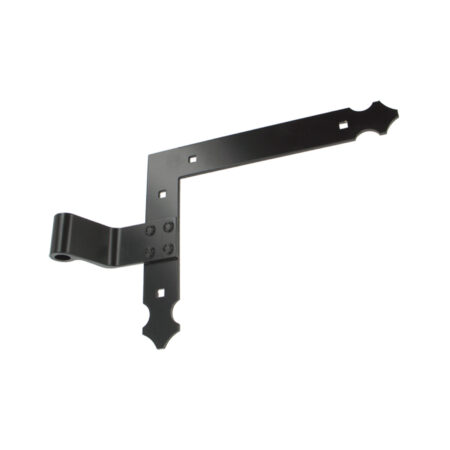

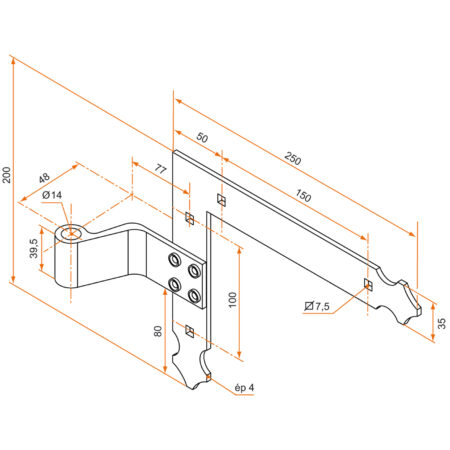

Angle T strap hinge – scalloped end – Ø14 – H.200xL.250 – 35×4 – 7.5 mm square holes – 48×77 offset

References

Information

Downloads

Place an order

Reference

Information

Downloads

Place an order

Références

SKU	Assembly direction	Finishing stage	Pkg	Delay (d)
3PE92071G	LEFT	9005-30%	25	14
3PE92071D	RIGHT	9005-30%	25	14
3PE91066G	LEFT	9016-80%	25	14
3PE91066D	RIGHT	9016-80%	25	14
3PE92071GRAL	LEFT		1	14
3PE92071DRAL	RIGHT		1	14
