Références

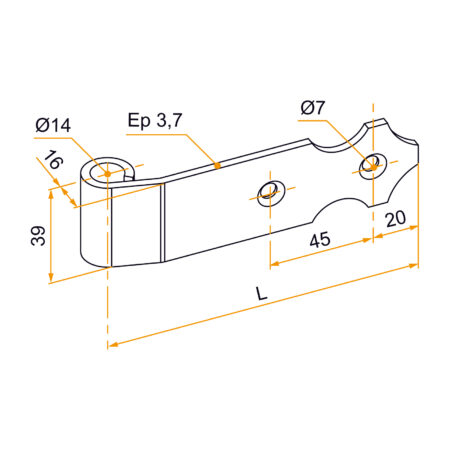

| SKU | L | Finishing stage | Pkg | Delay (d) |
|---|---|---|---|---|
| 800225 | 130 | 9005-30% | 50 | 14 |
| 8002236 | 130 | 9016-80% | 50 | 14 |
| 800225RAL | 130 |
|
1 | 14 |
| 800227 | 150 | 9005-30% | 50 | 21 |
| 8002286 | 150 | 9016-80% | 50 | 21 |
| 800227RAL | 150 |
|
1 | 21 |
Information
Commentaire

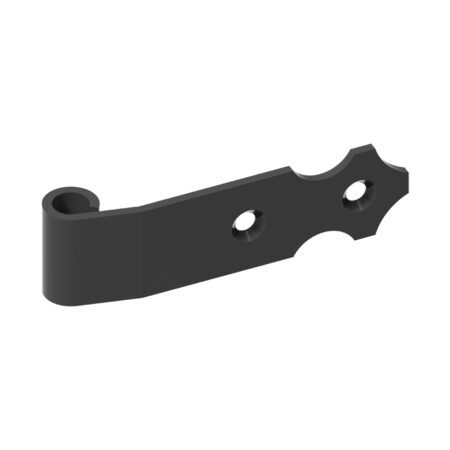

Made of aluminium
Astuce
This hinge is compatible with the pin – Ø14 ( Please refer to the index).
