Références
| SKU | Finishing stage | Composite part | Pkg | Delay (d) |
|---|---|---|---|---|
| KCU003N53 | 9005-30% | black | 6 | 14 |
| KCU003B63 | 9016-30% | white | 6 | 14 |
| KCU003B03 | 9010-30% | white | 6 | 14 |
| KCU003G63 | 9006-30% | gray | 6 | 14 |
| KCU003RALAN |
|
black | 1 | 21 |
| KCU003RALAB |
|
white | 1 | 21 |
Information
Comment
This range of 3 hinges is suitable for all gate sizes on the market.
The hinge can be used :
– At the top and bottom.
– At the top, in combined with our bottom hinges.
– On the left and right leaf.
The hinge is designed for easy gate assembly.
The PLATIMIUM innovative metric system offers a wide adjustment range (30 mm) depending on the hinge:
– From 45 to 75 mm (70 and 90 mm wide plates).
– From 50 to 80 mm (110 mm wide plate).
The optional profile covers the plate and the gap between the mount and pillar. The entire product is fully lacquerable.
The hinge can be used :
– At the top and bottom.
– At the top, in combined with our bottom hinges.
– On the left and right leaf.
The hinge is designed for easy gate assembly.
The PLATIMIUM innovative metric system offers a wide adjustment range (30 mm) depending on the hinge:
– From 45 to 75 mm (70 and 90 mm wide plates).
– From 50 to 80 mm (110 mm wide plate).
The optional profile covers the plate and the gap between the mount and pillar. The entire product is fully lacquerable.
Tip

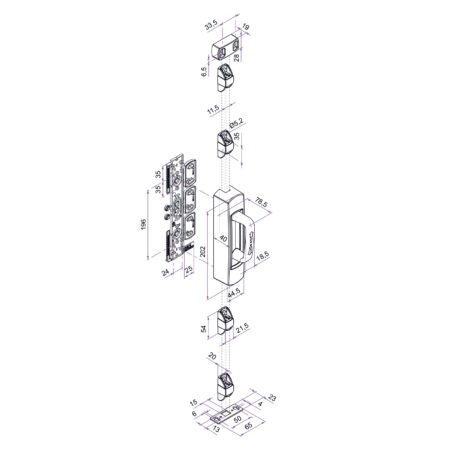

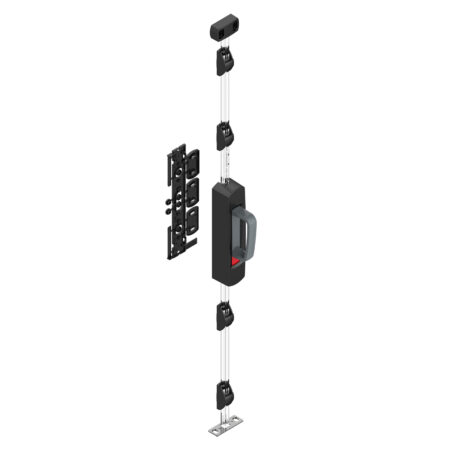

Pack composition:
1 aluminium espagnolette bolt
4 aluminium wedge
1 aluminium lintel striker plate
1 304 stainless steel threshold strike plate
1 composite assembly template
1 aluminium espagnolette bolt
4 aluminium wedge
1 aluminium lintel striker plate
1 304 stainless steel threshold strike plate
1 composite assembly template
