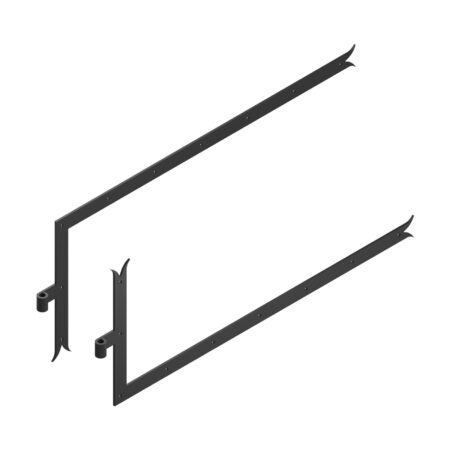

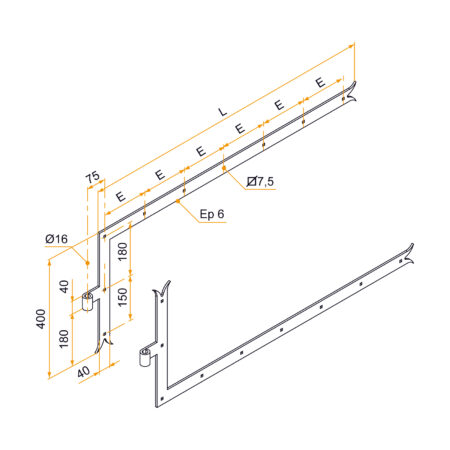

Set of 2 angle T strap hinges – fish tail – Ø16 – H.400 – 40×6 – 7.5 mm square holes – offset 75

References

Information

Downloads

Place an order

Reference

Information

Downloads

Place an order

Références

SKU	L	CD	No. of holes	Finishing stage	Pkg	Delay (d)
1KI92216	800	146	8	9005-30%	1	SD
1KI92217	1000	155	9	9005-30%	1	SD

Technical specifications
